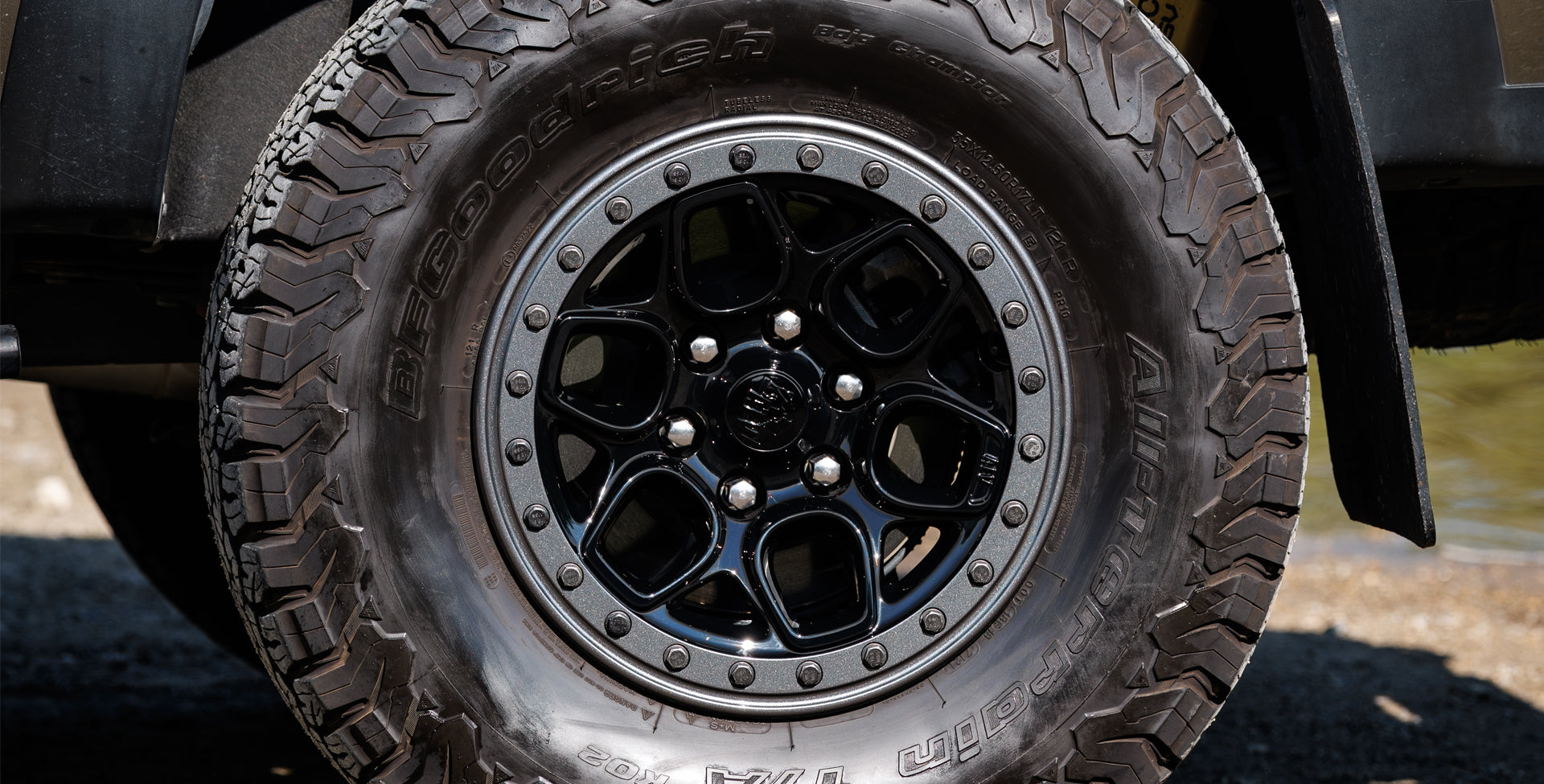

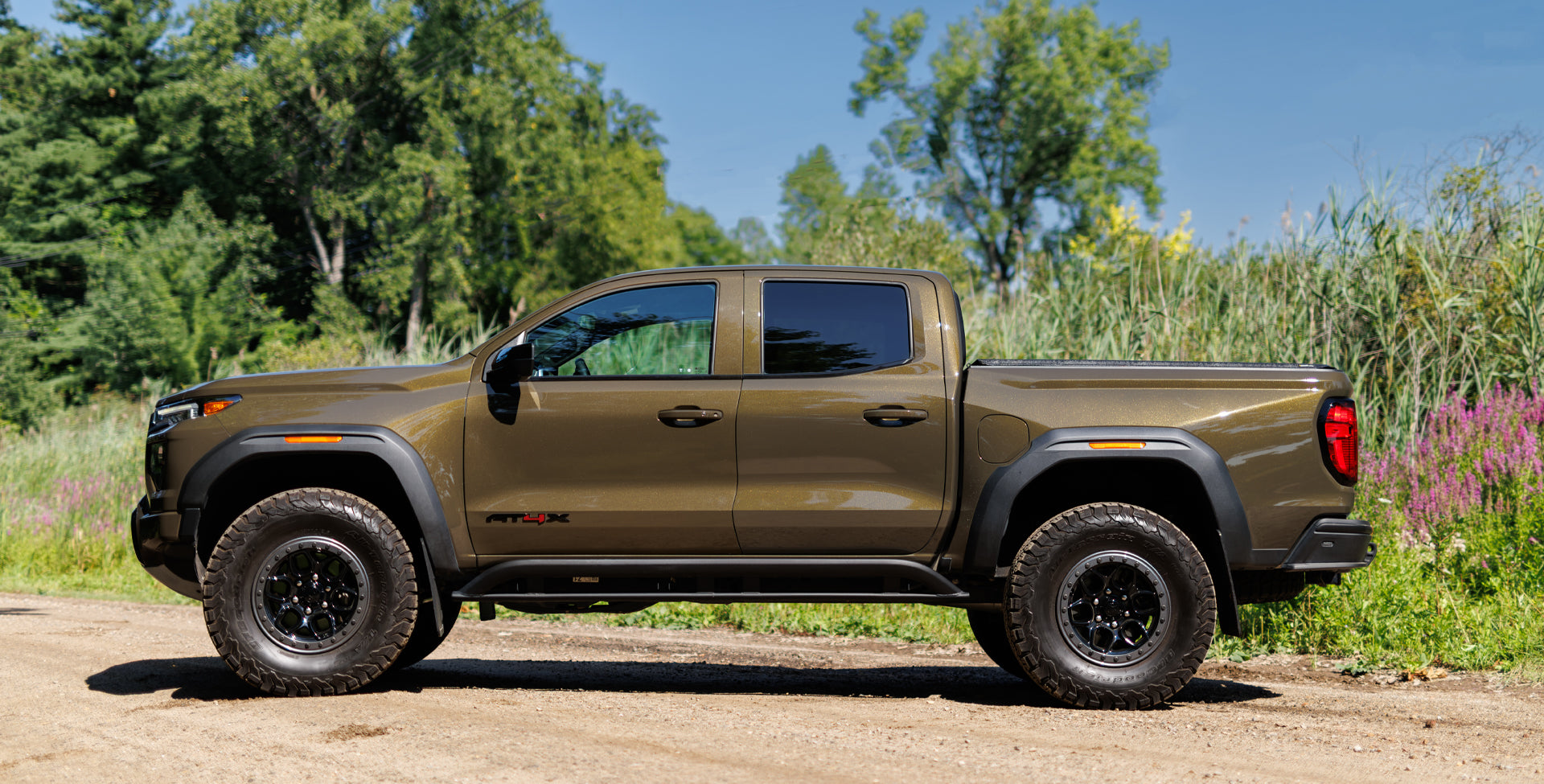

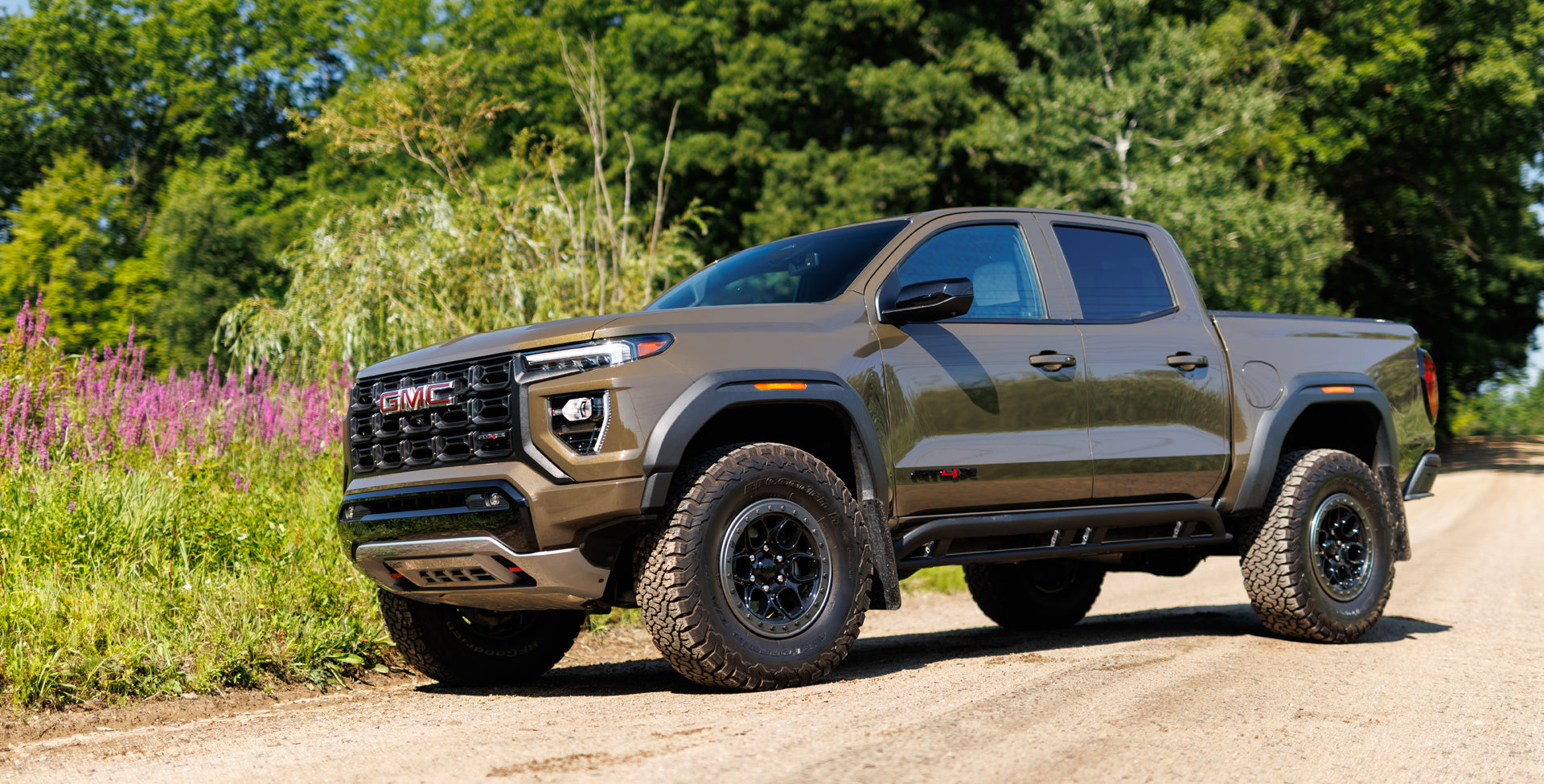

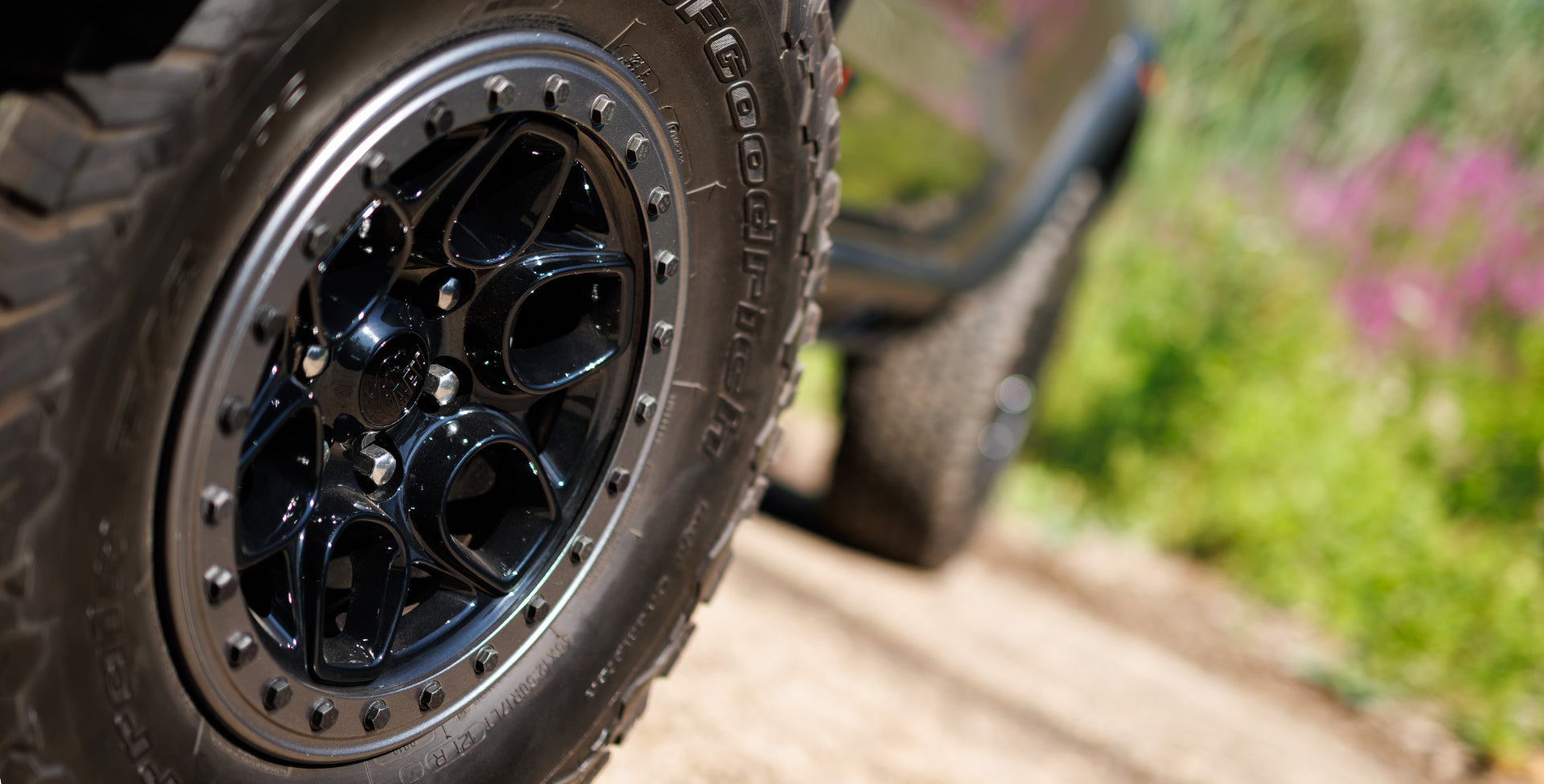

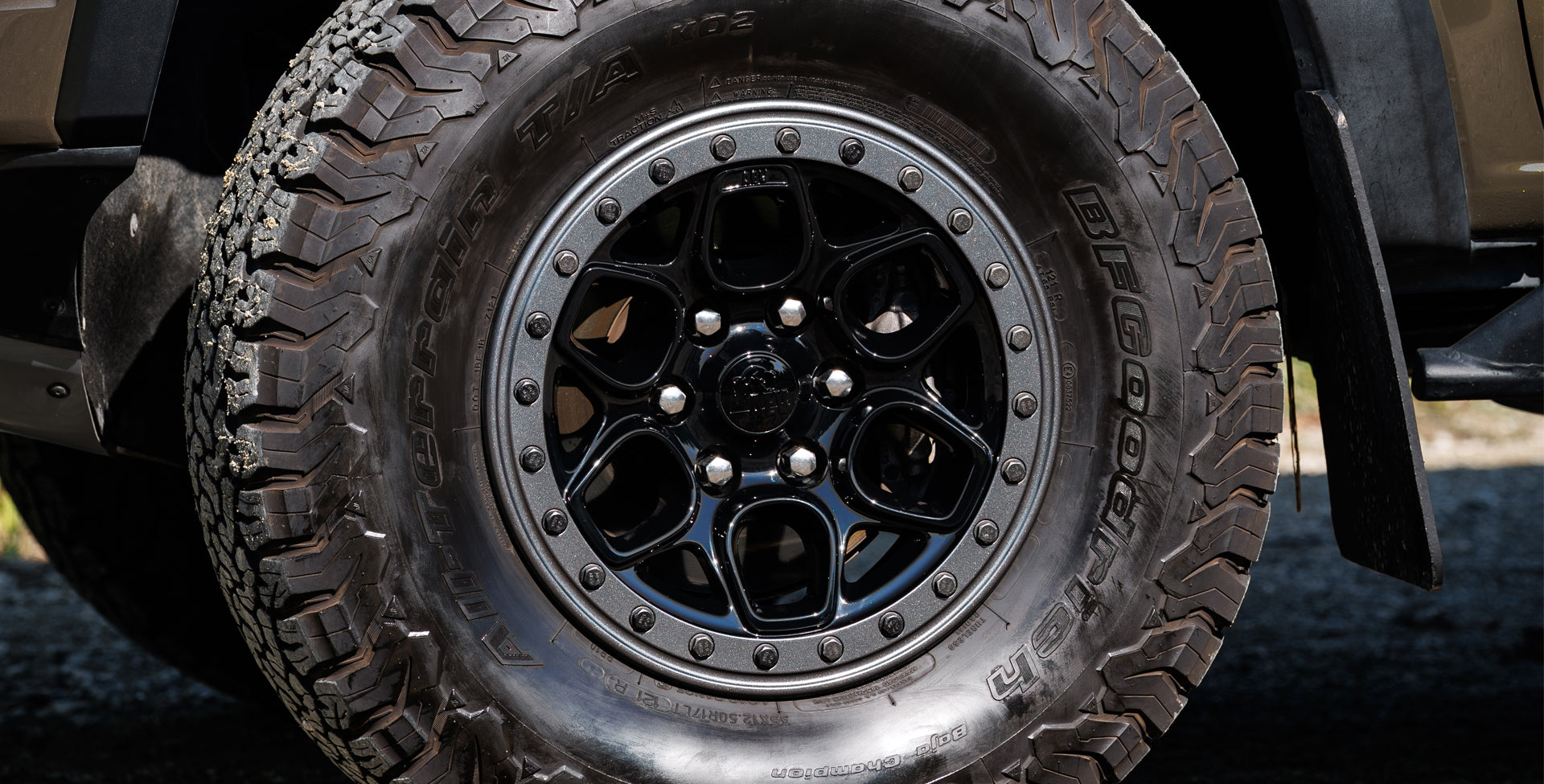

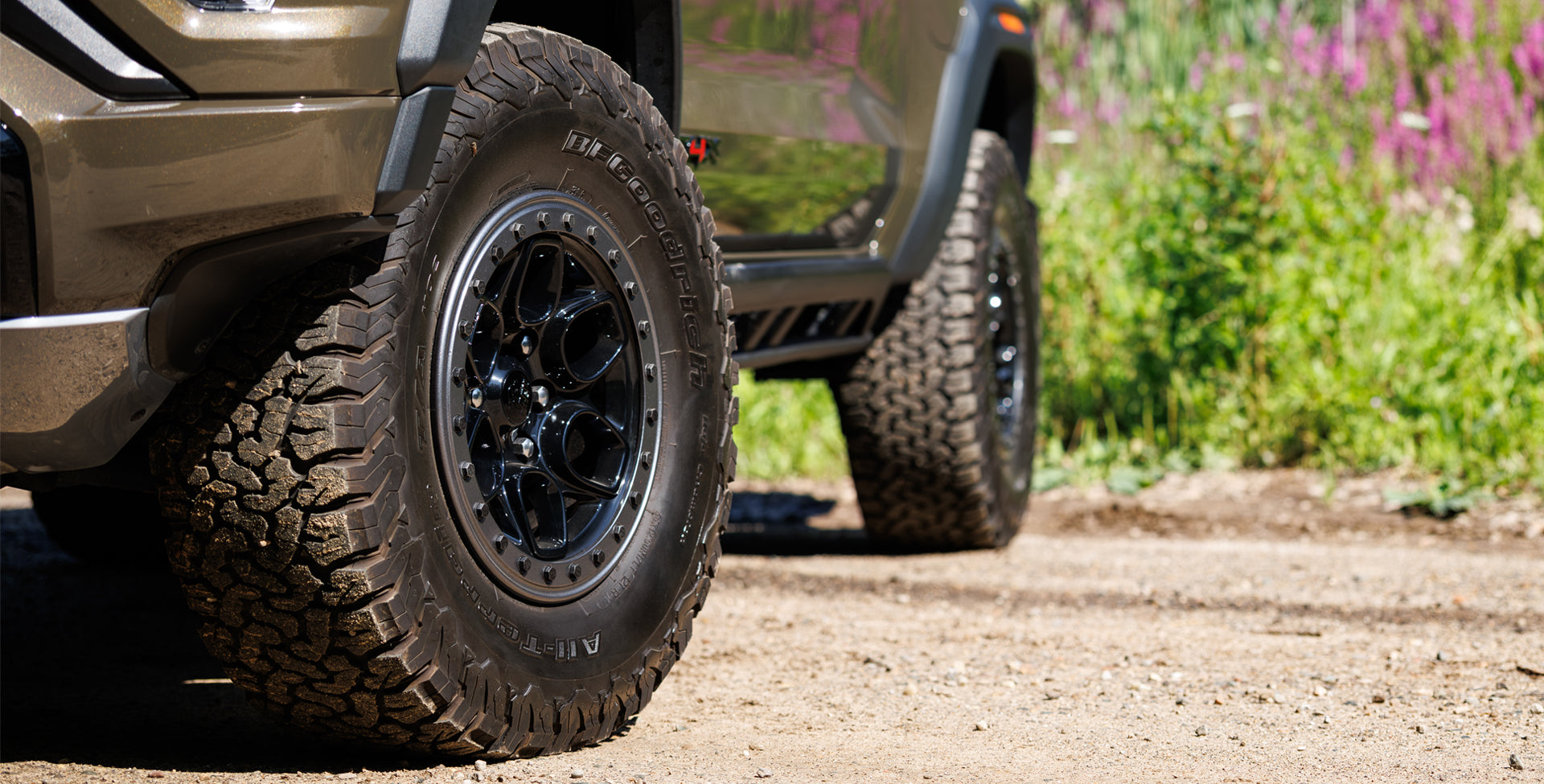

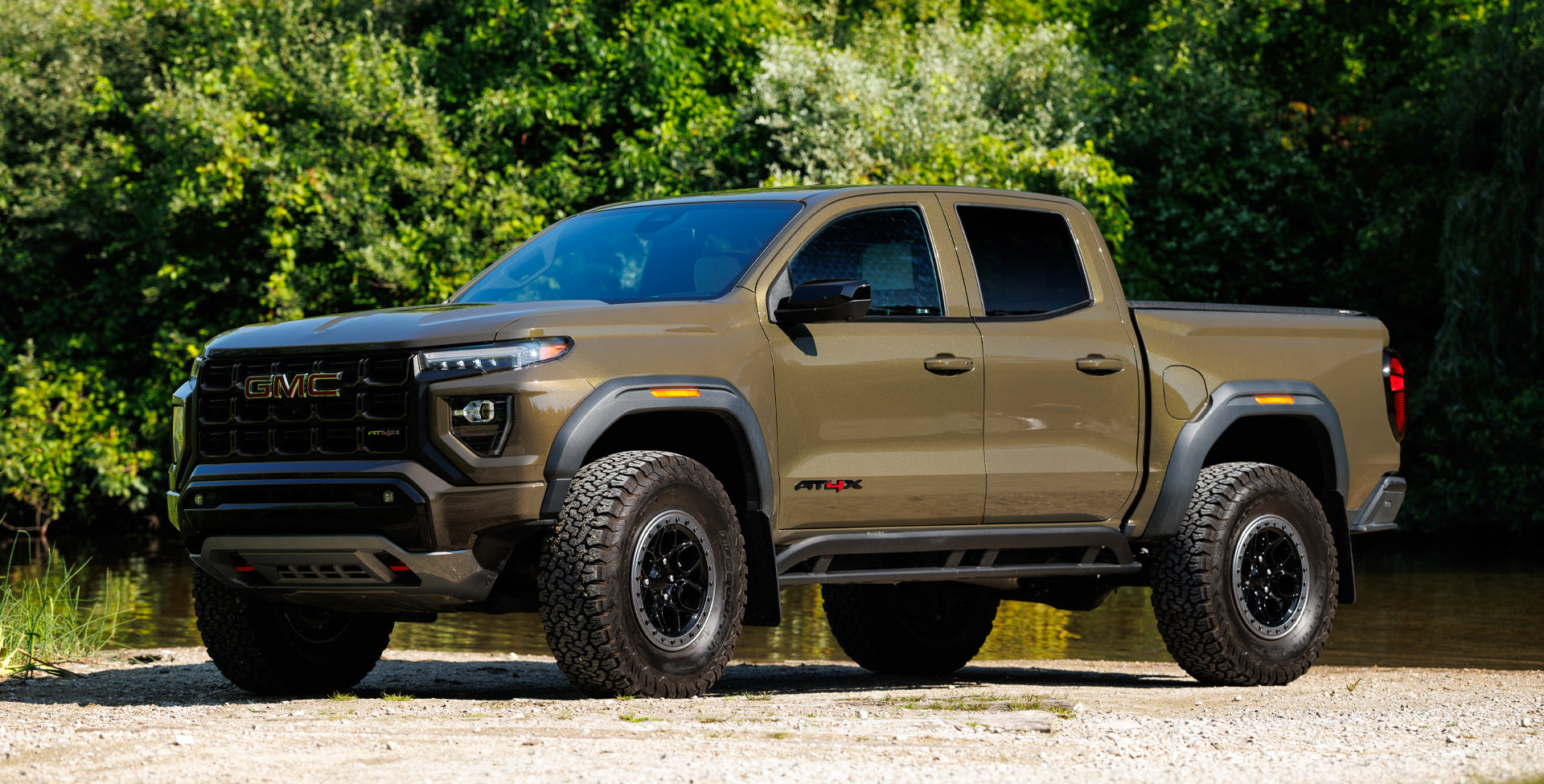

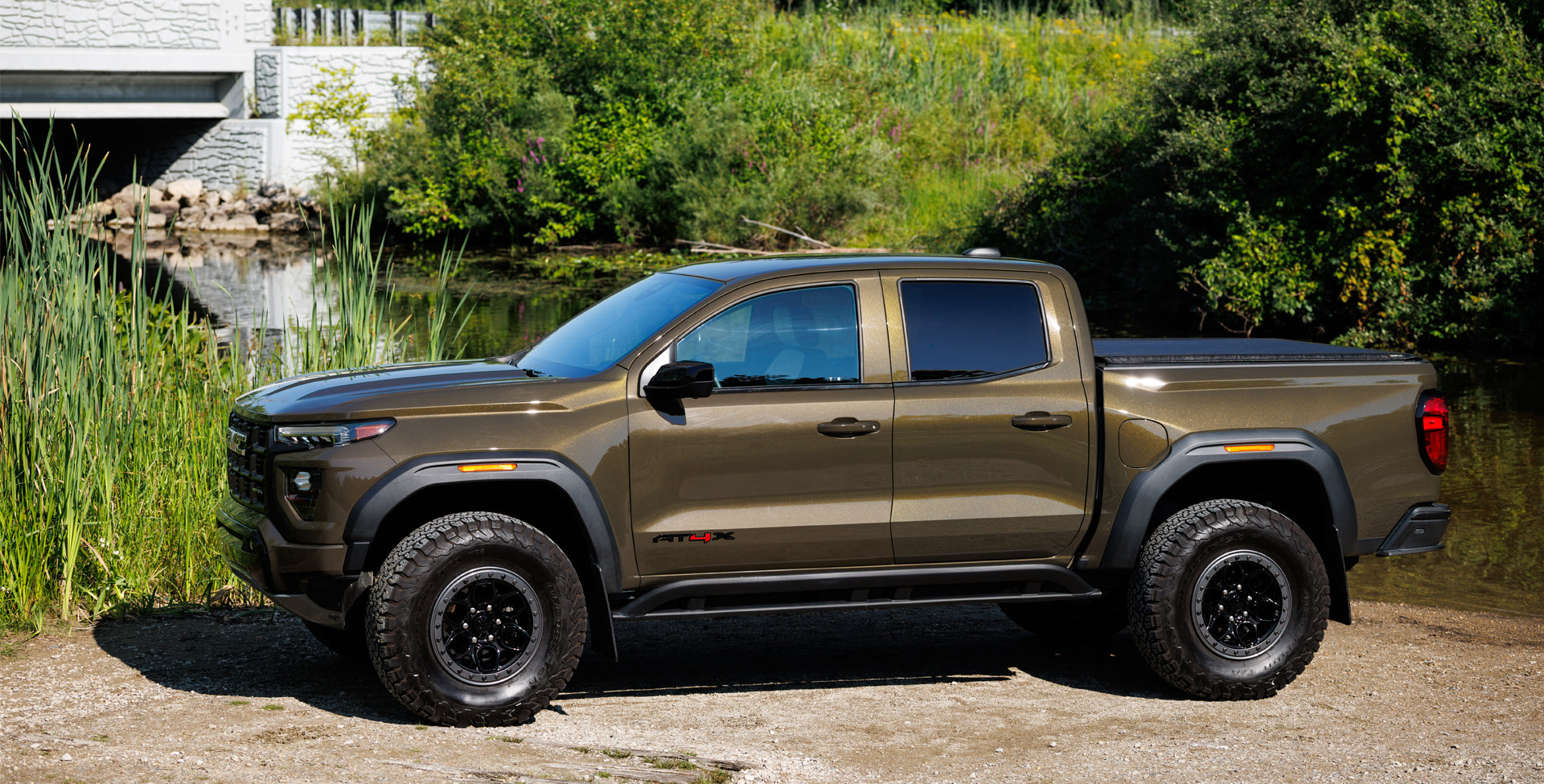

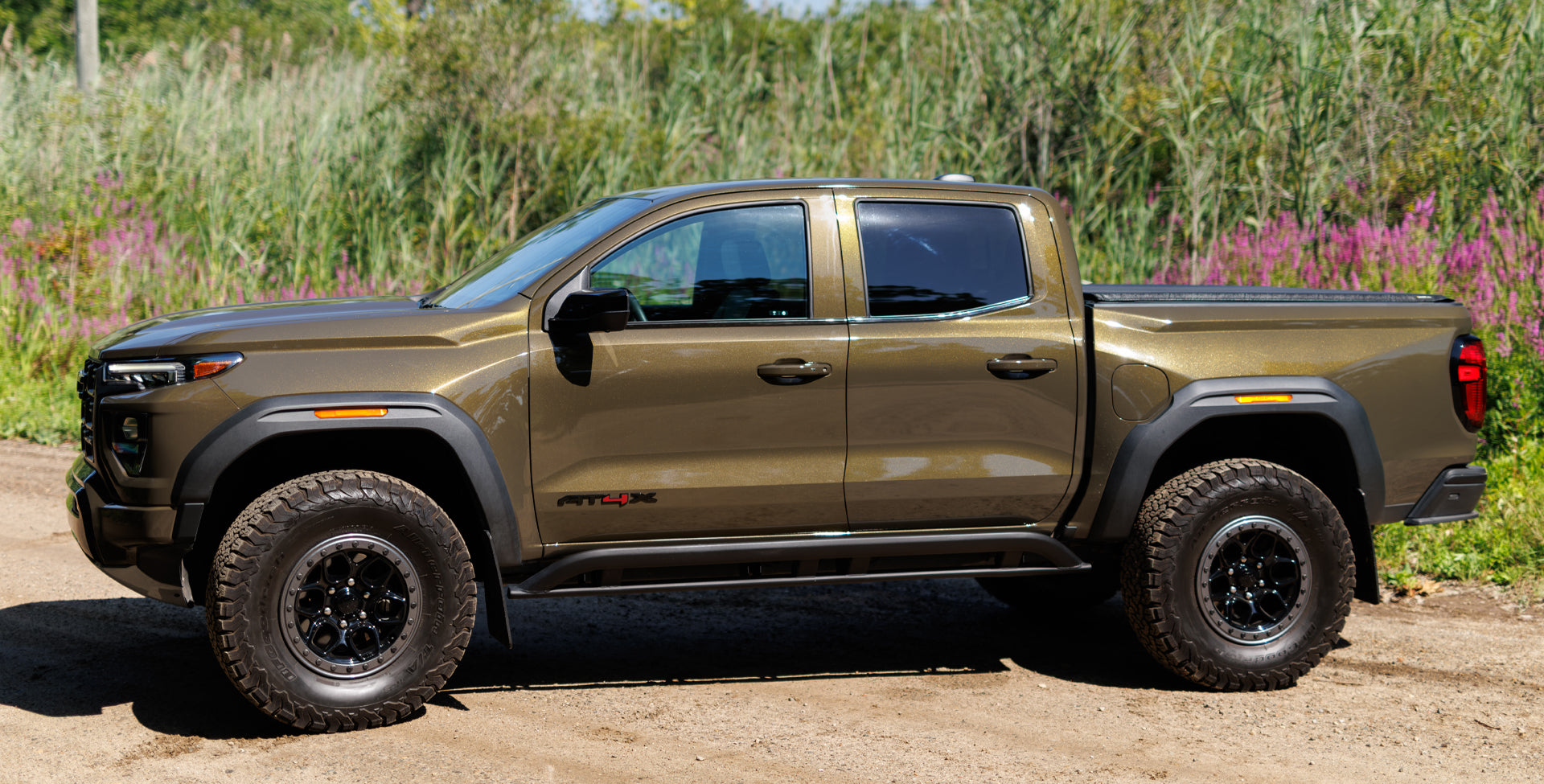

AEV Crestone DualSport Wheel for 2023+ Colorado/Canyon and 2019+ Silverado/Sierra 1500
Choose options
When you take your truck off-road, the wrong wheels can limit capability—causing tire rub, damaged rims, or exposed valve stems that are vulnerable to trail hazards. The AEV 17x8 Crestone DualSport Wheel was engineered specifically for the 2023+ Chevrolet Colorado and GMC Canyon, and 2019+ Chevrolet Silverado 1500 and GMC Sierra 1500, delivering trail-ready performance without compromising on everyday drivability. Its split 6-spoke design combines a modern, aggressive appearance with AEV's signature DualSport functionality.

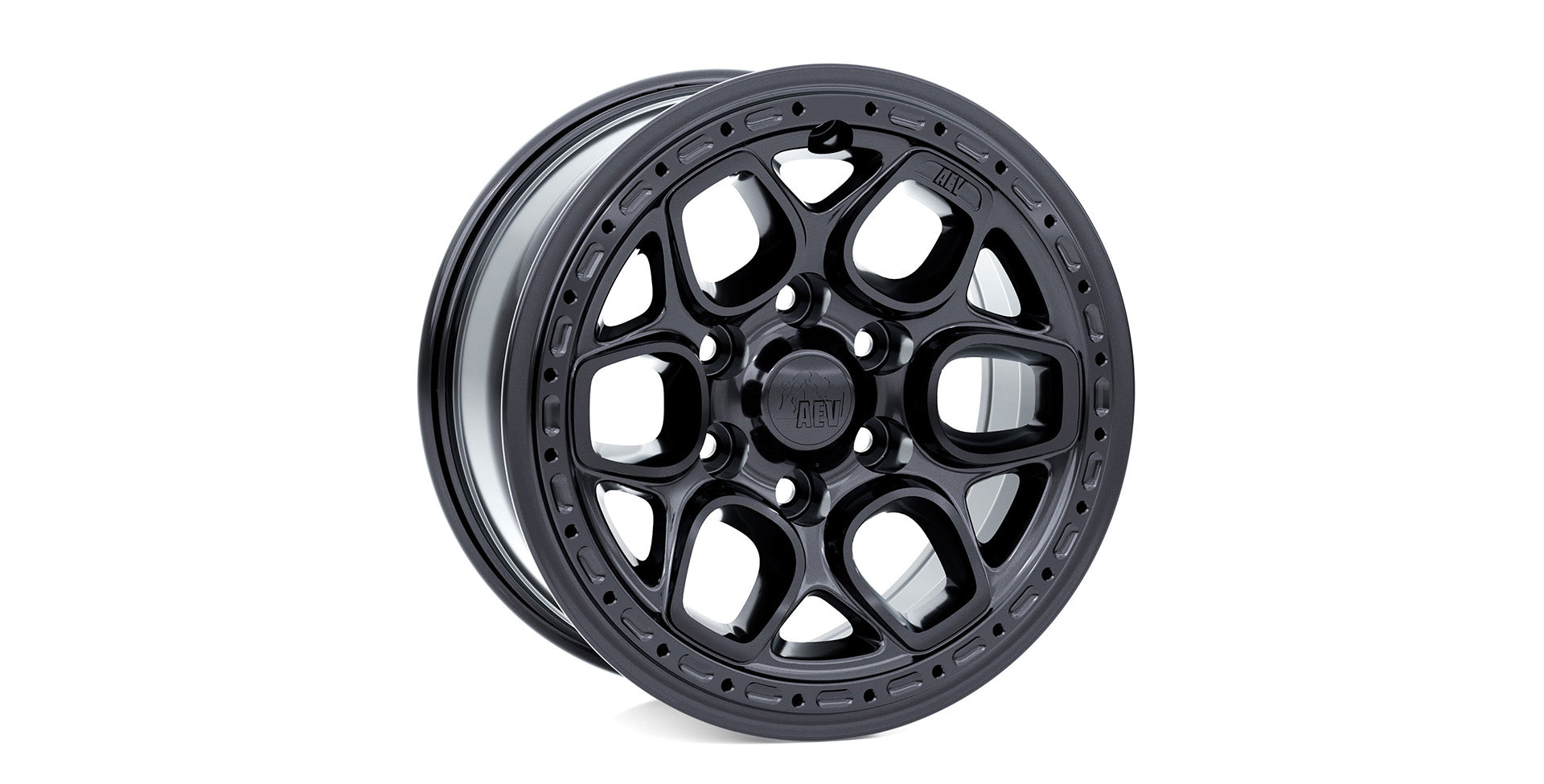

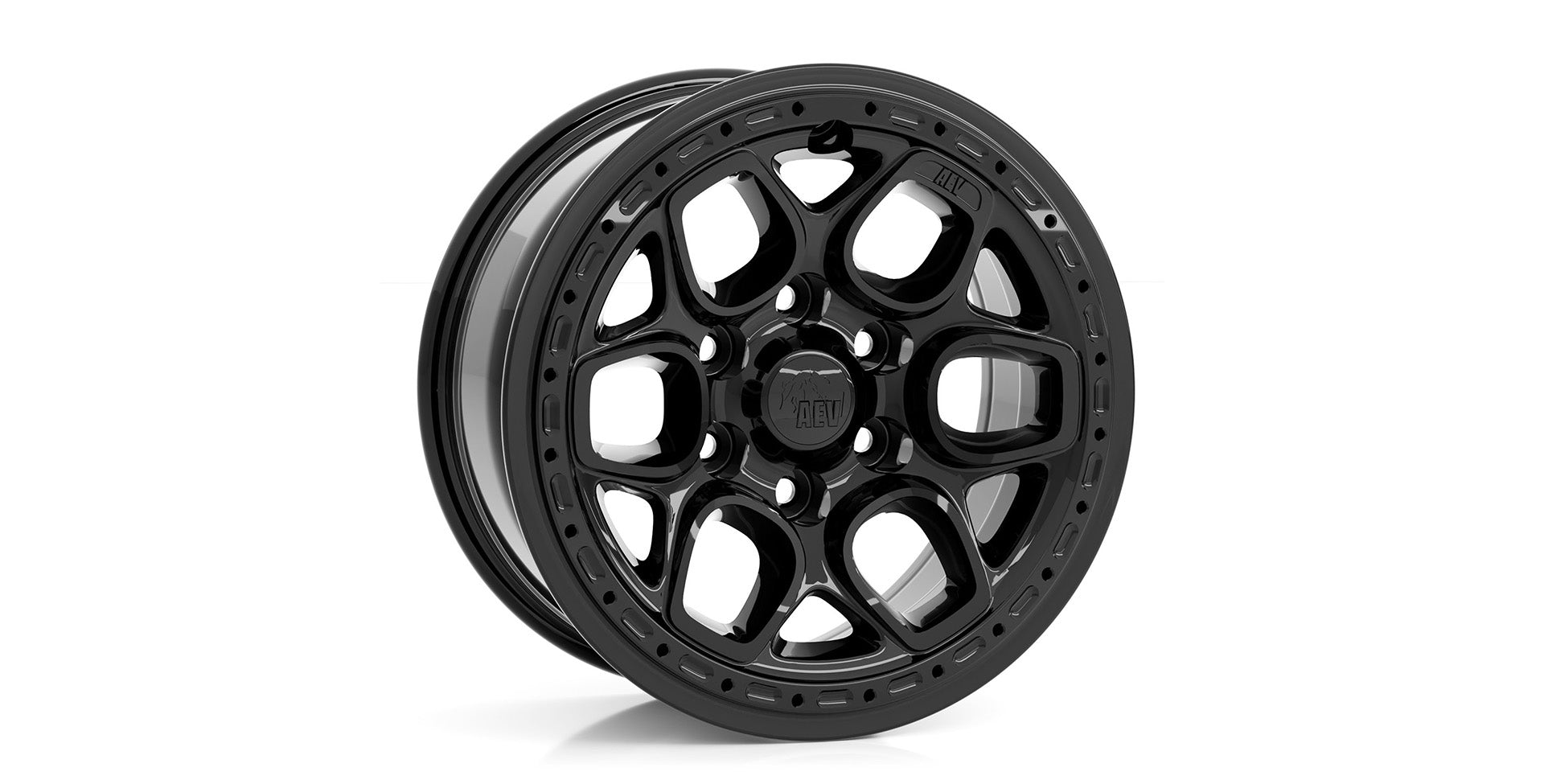

Purpose-built for GM trucks running 35-inch tires, the Crestone features a 6x139.7 mm bolt pattern and 12 mm offset to provide the clearance and fitment these platforms require. Manufactured from heat-treated A356-T6 cast aluminum and validated to SAE J2530 standards, the Crestone delivers an exceptional balance of strength and weight. A recessed valve stem pocket helps protect the valve stem from trail damage, while full TPMS compatibility maintains factory functionality. The wheel is available in Gloss Black and Onyx finishes and is compatible with AEV Black Lug Nuts or the vehicle's OE lug nuts, wheel locks, and lug wrench.
Configuration Options
No Ring
Run the Crestone with a clean, one-color appearance. Black nylon hardware is included to fill the mounting holes and help prevent dirt and debris from collecting.

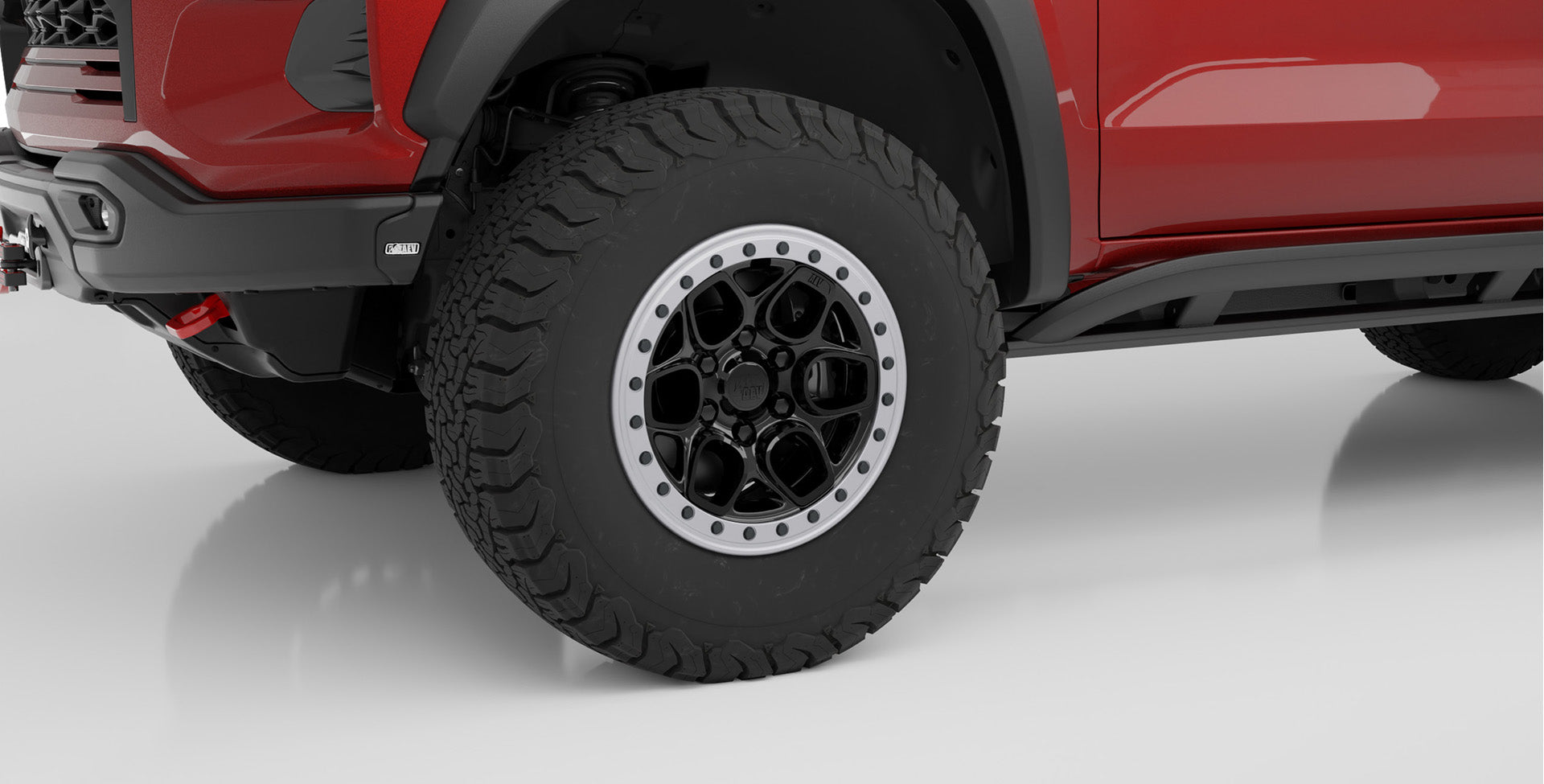

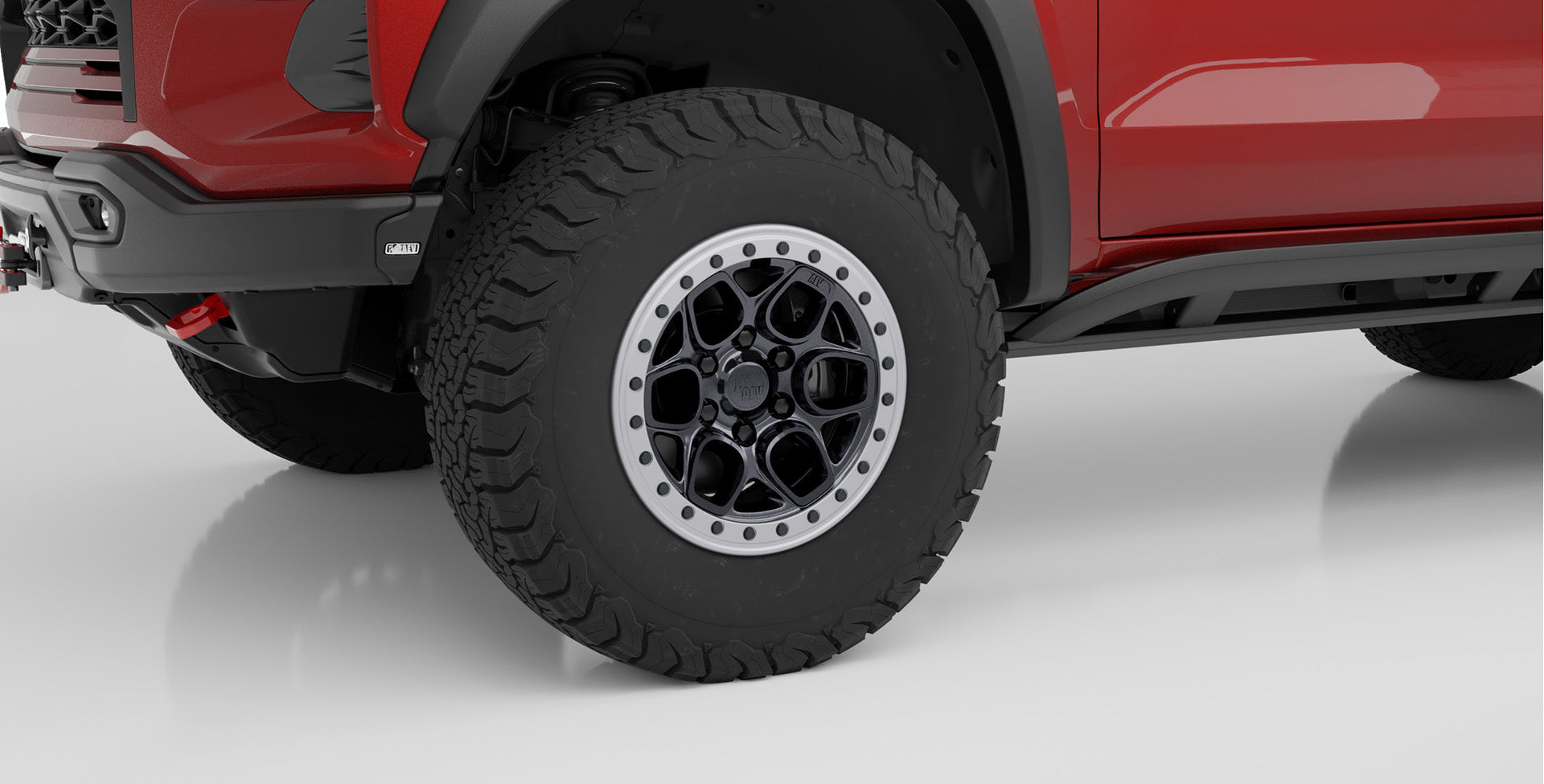

Protection Ring
Protect your investment on the trail. The cast aluminum Protection Ring acts as a sacrificial barrier to help shield the wheel face from scratches and rock damage while delivering the aggressive appearance of a beadlock wheel. Includes satin black Grade 10.9 M10 hardware.

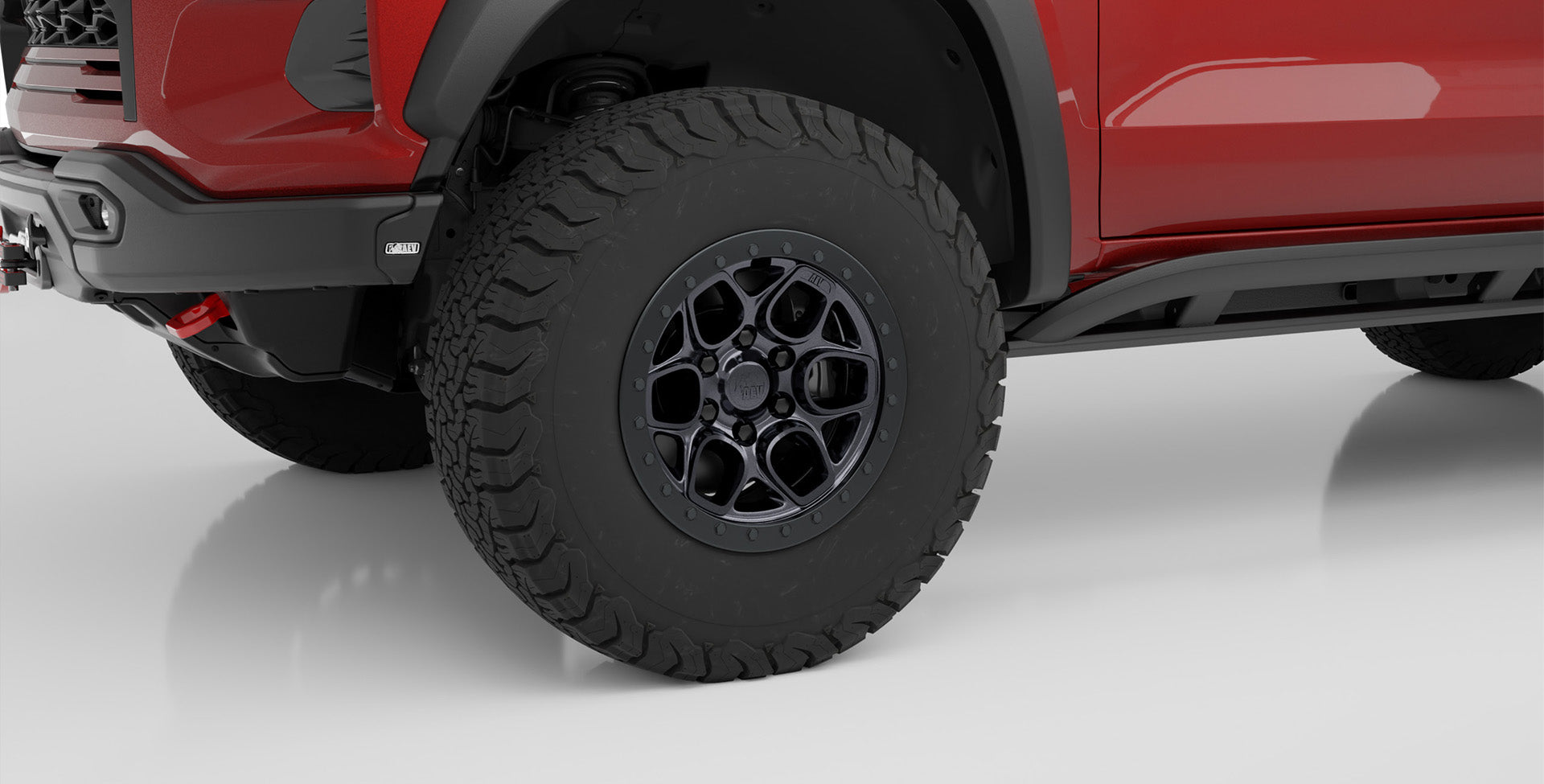

Beadlock Ring
Built for serious off-road use, the forged 16 mm aluminum Beadlock Ring mechanically clamps the tire bead to the wheel, helping prevent the tire from slipping on the rim or becoming unseated when operating at very low tire pressures. Custom Grade 10.9 hardware provides superior shear strength and increased torque capacity for demanding conditions. AEV recommends beadlock rings for off-road use only.
|
Width |
Offset |
Hub Bore |
|
|
"Standard" Factory Wheel |
8.5 |
26 |
77.89 |
|
ZR2 or Canyon Factory Wheel |
8 |
24 |
77.89 |
|
AEV OEM Wheel Colorado wheel |
8.5 |
12 |
77.89 |
| Brand | Model | Size |
|---|---|---|
| BFGoodrich | All-Terrain KO2 | LT285/70R17 |
| BFGoodrich | All-Terrain KO2 | LT315/70R17 |
| BFGoodrich | All-Terrain KO2 | 34×10.50R17 |
| BFGoodrich | All-Terrain KO2 | 35×12.50R17 |
| BFGoodrich | Mud-Terrain KM2 | LT285/70R17 |
| BFGoodrich | Mud-Terrain KM2 | 35×12.50R17 |
| BFGoodrich | Mud-Terrain KM3 | LT285/70R17 |
| BFGoodrich | Mud-Terrain KM3 | LT295/70R17 |
| BFGoodrich | Mud-Terrain KM3 | 35×12.50R17 |
| Toyo | Open Country M/T | 35×12.50R17 |
| Yokohama | Geolander MT G003 | LT285/70R17 |
