Sale price$311.00
No reviews
No reviews
SKU: 20402046AA

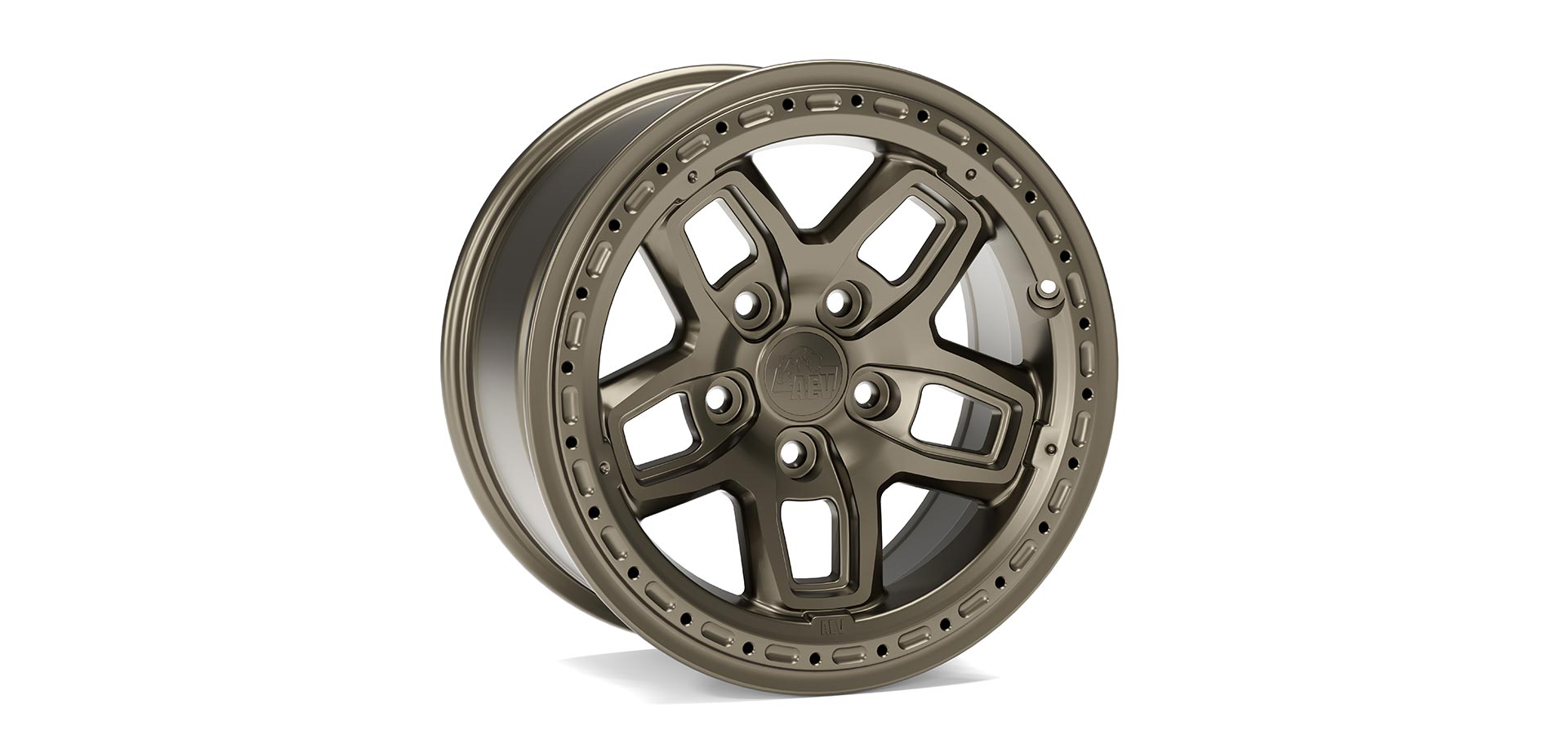

Wheel Color:Bronze
Quantity:
In stock

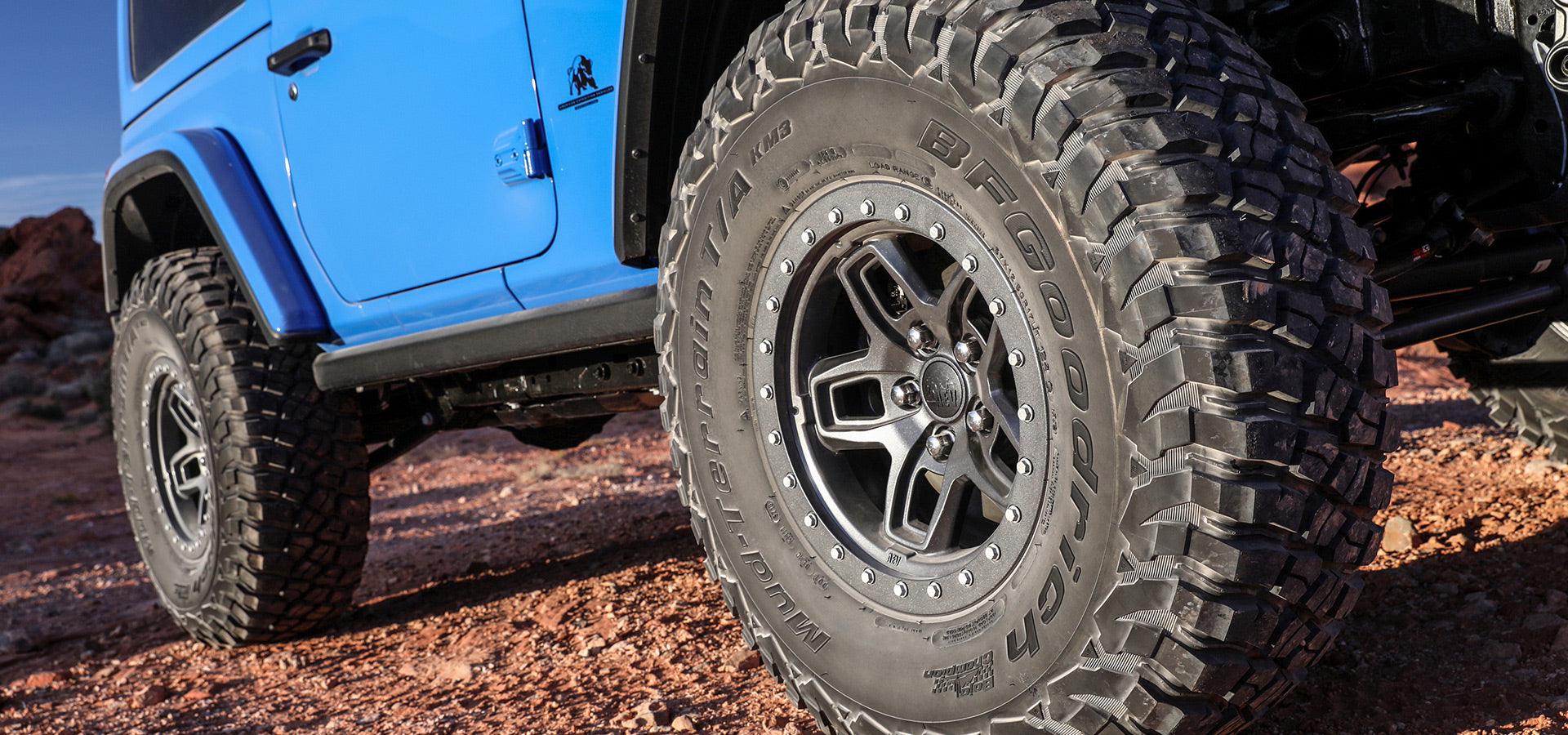

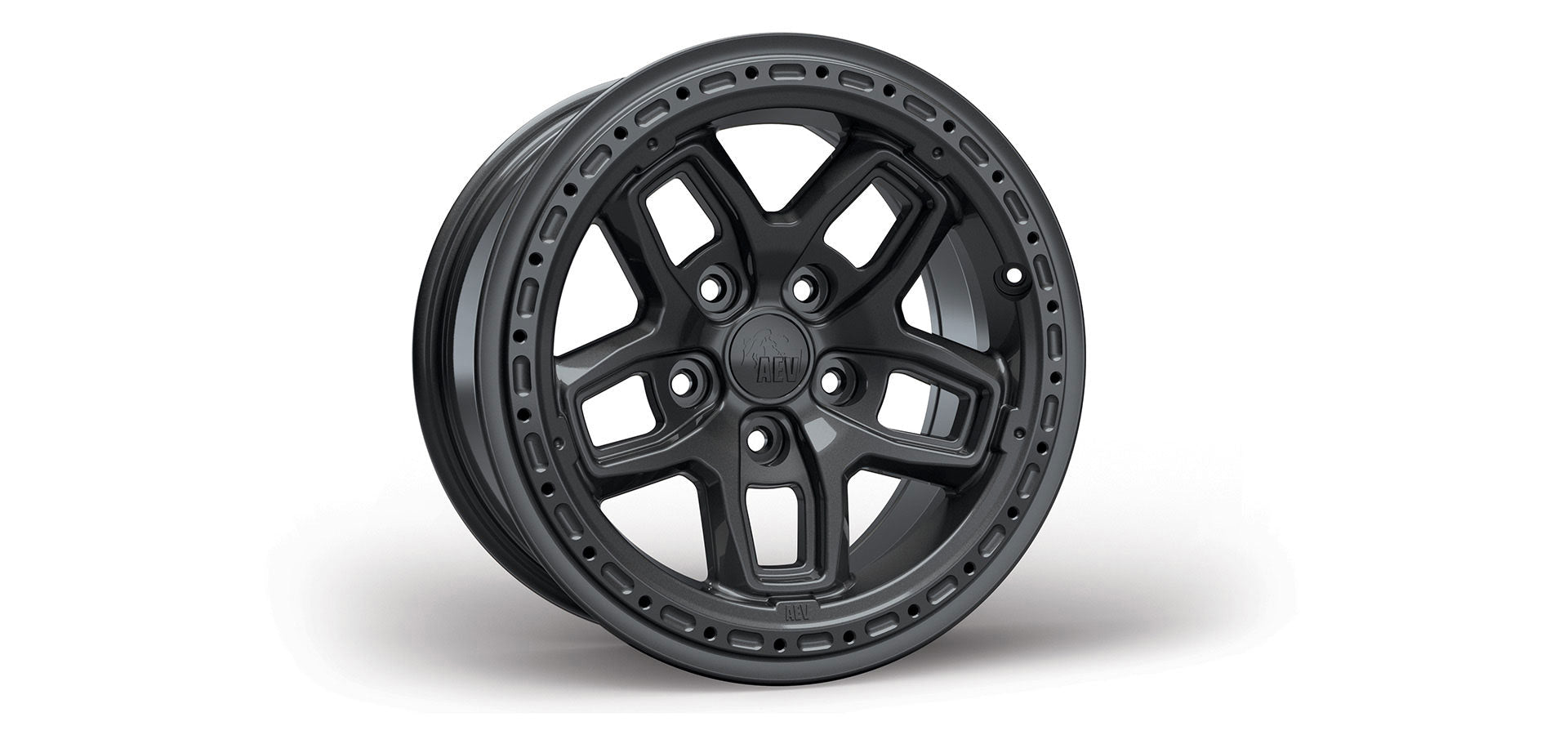

AEV's popular and versatile Borah DualSport Wheel is now available for the 2018+ JL Wrangler and Gladiator truck in Onyx and Satin Black finish! As the name implies, this is not another one-size-fits all aftermarket wheel - it is specifically designed for the JL Wrangler and JT Gladiator, paying close attention to its unique offset, back spacing and center cap bore requirements. The Borah's unique offset of +25mm, works perfectly with the JL Wrangler's and JT Gladiator's variety of fender flare styles and provides the optimal balance of tire clearance, scrub radius and handling.

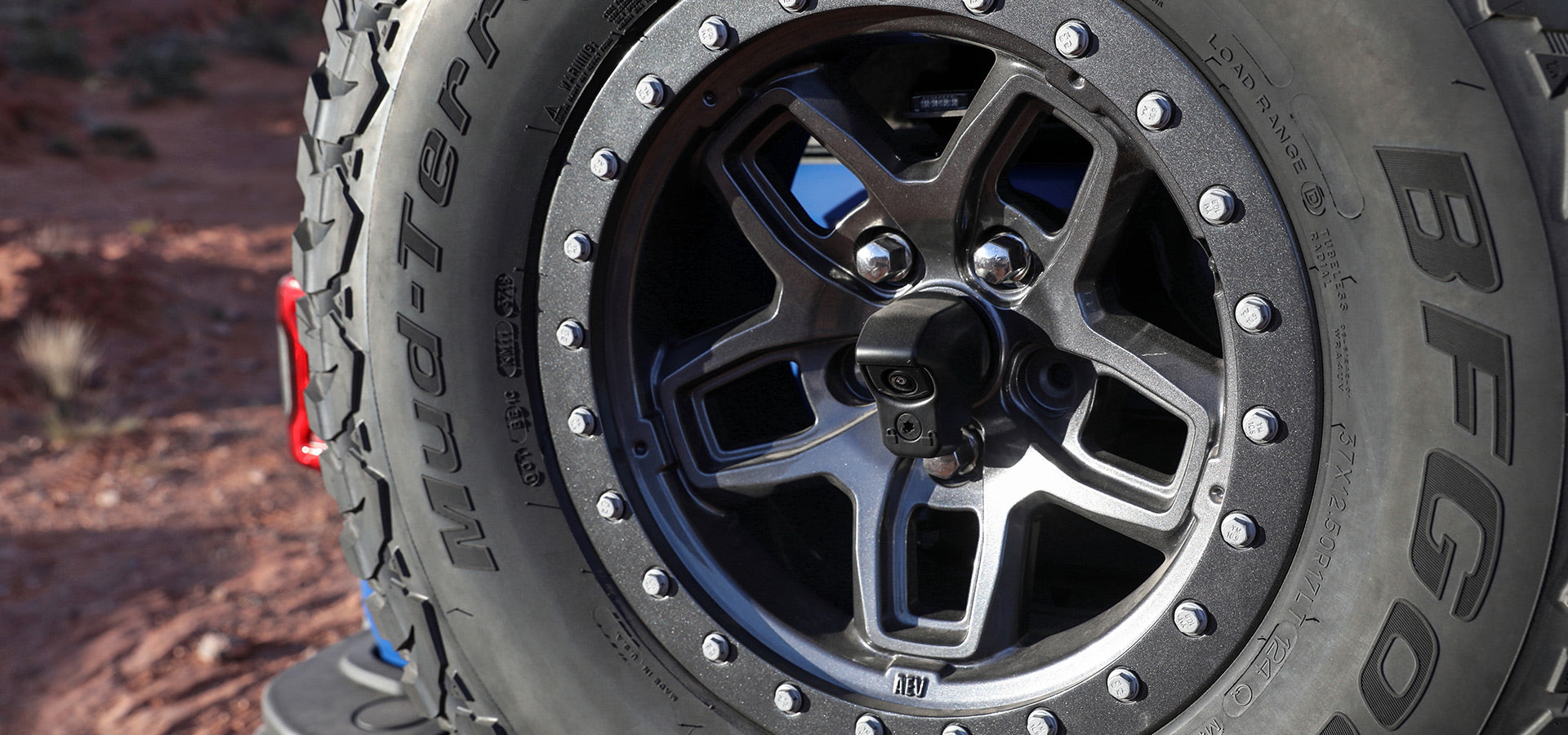

The AEV Jeep Wrangler JL/Gladiator Borah Beadlock wheel is available in a number of customizable configurations with either a fully-functional Beadlock Ring for running very low tire pressure off-road, a Protection Ring designed for street use as well as additional wheel protection off-road, or no ring for a simple, minimalist look. Both the Beadlock and Protection Rings are interchangeable, giving you the flexibility to run a Protection Ring on the street or upgrade to a functional Beadlock Ring for off-road use.

Available Configuration Options:

There are three options available when configuring your Borah DualSport wheel. The optional Beadlock Ring and Protection ring are both available in a Silver, Onyx, or a Satin Black (unavailable for Onyx wheel finish) that can easily be painted for a truly customized appearance.

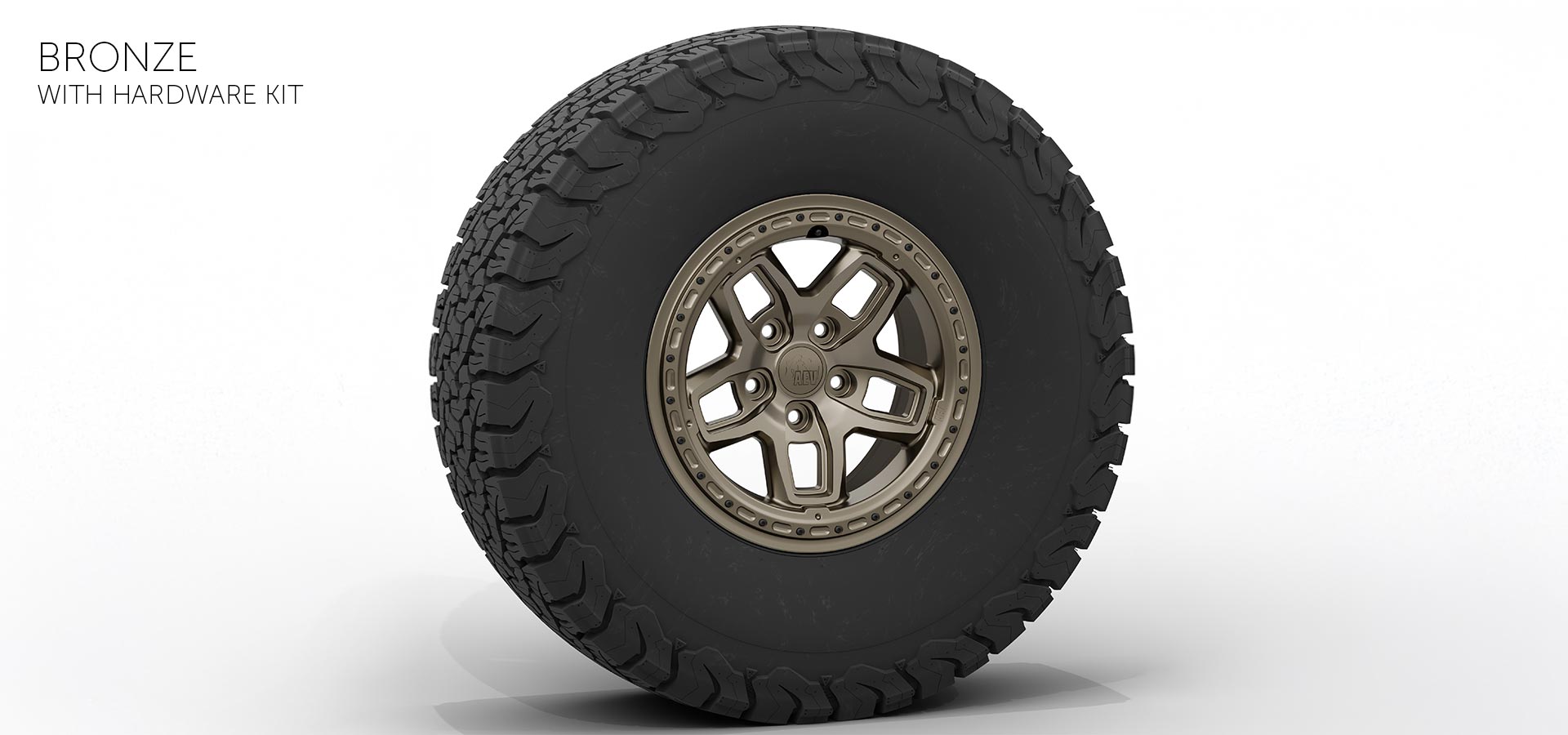

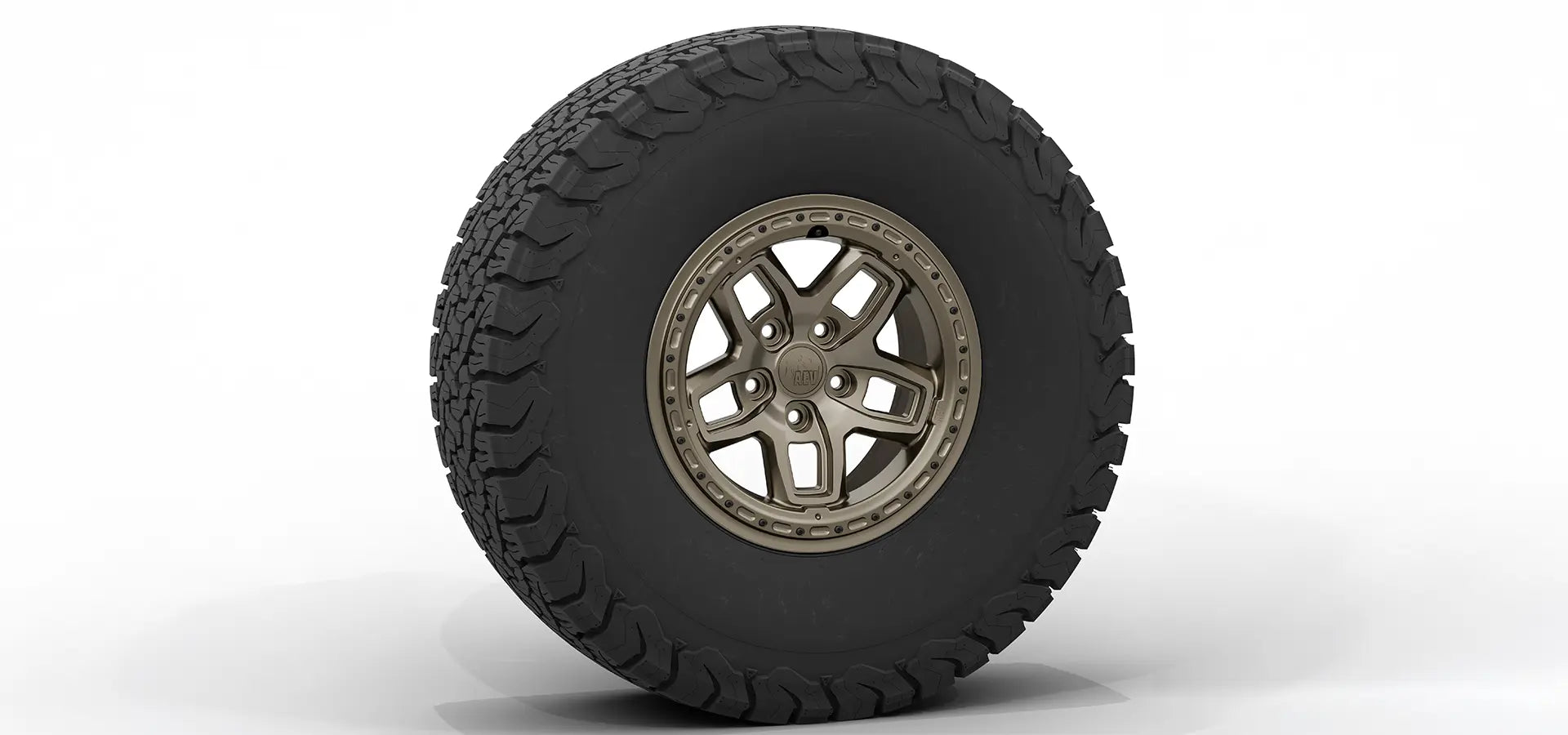

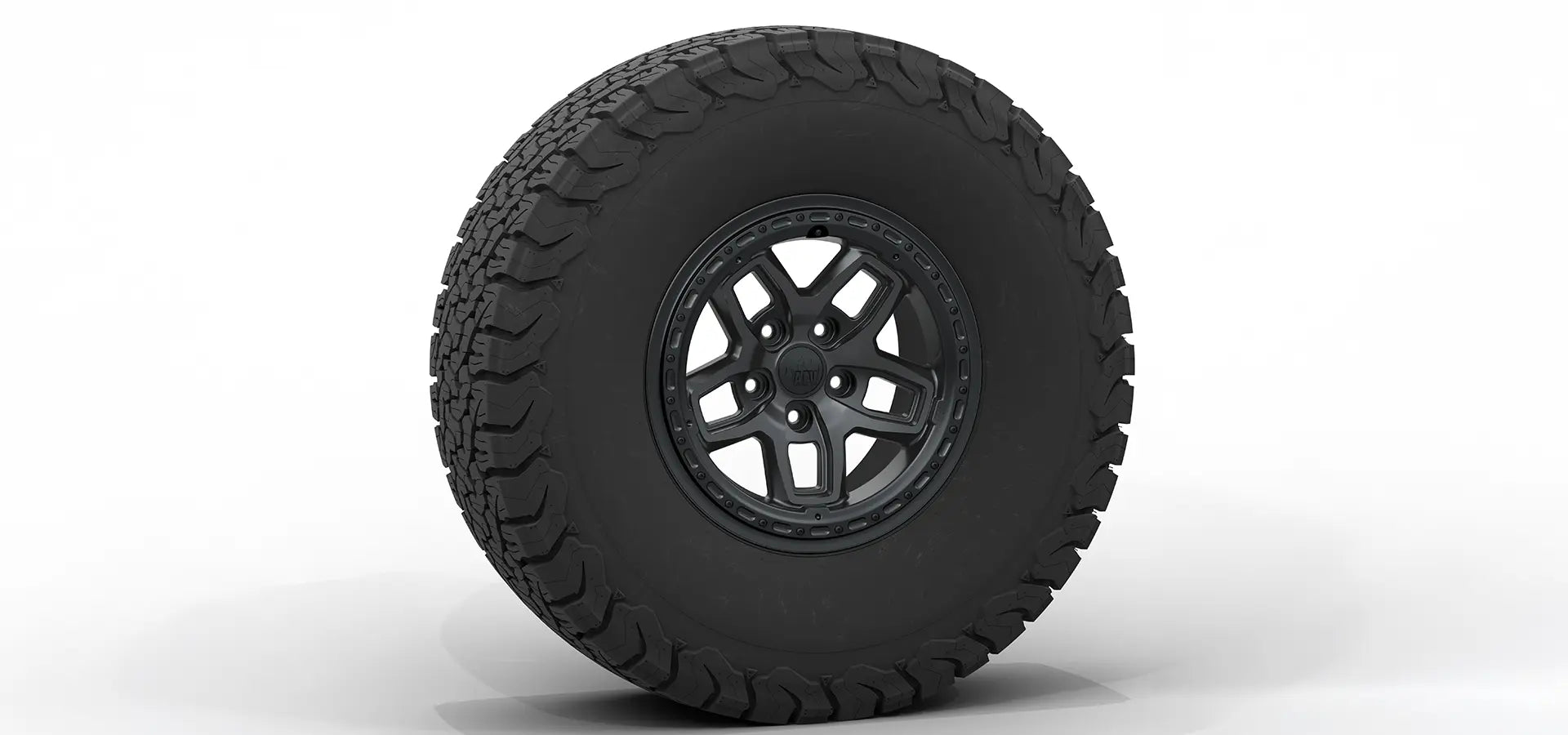

  • No Ring - The Borah wheel can be installed without a ring for a simple one-color look. AEV supplies black nylon hardware for this configuration to prevent dirt and debris from building up inside the threaded bolt holes.

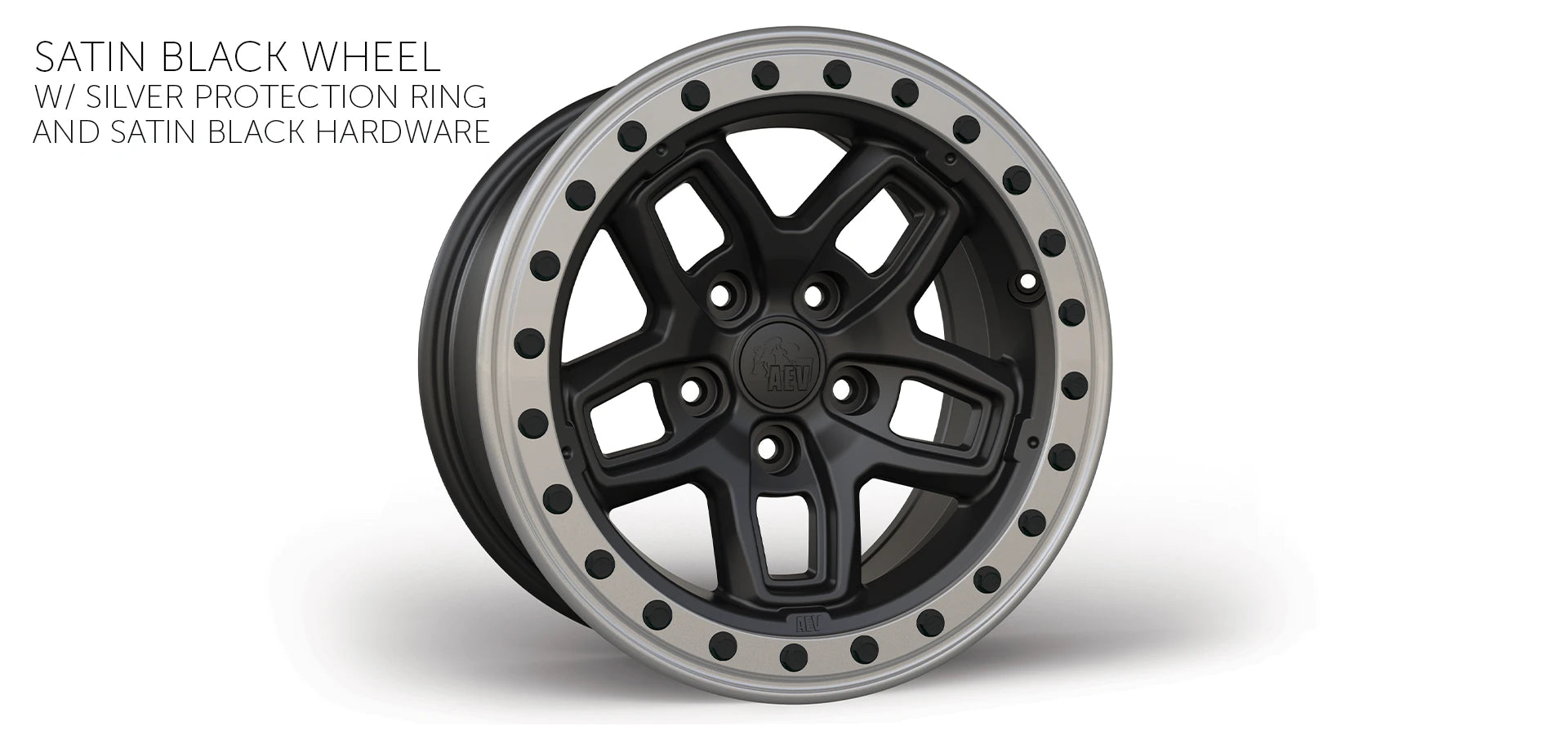

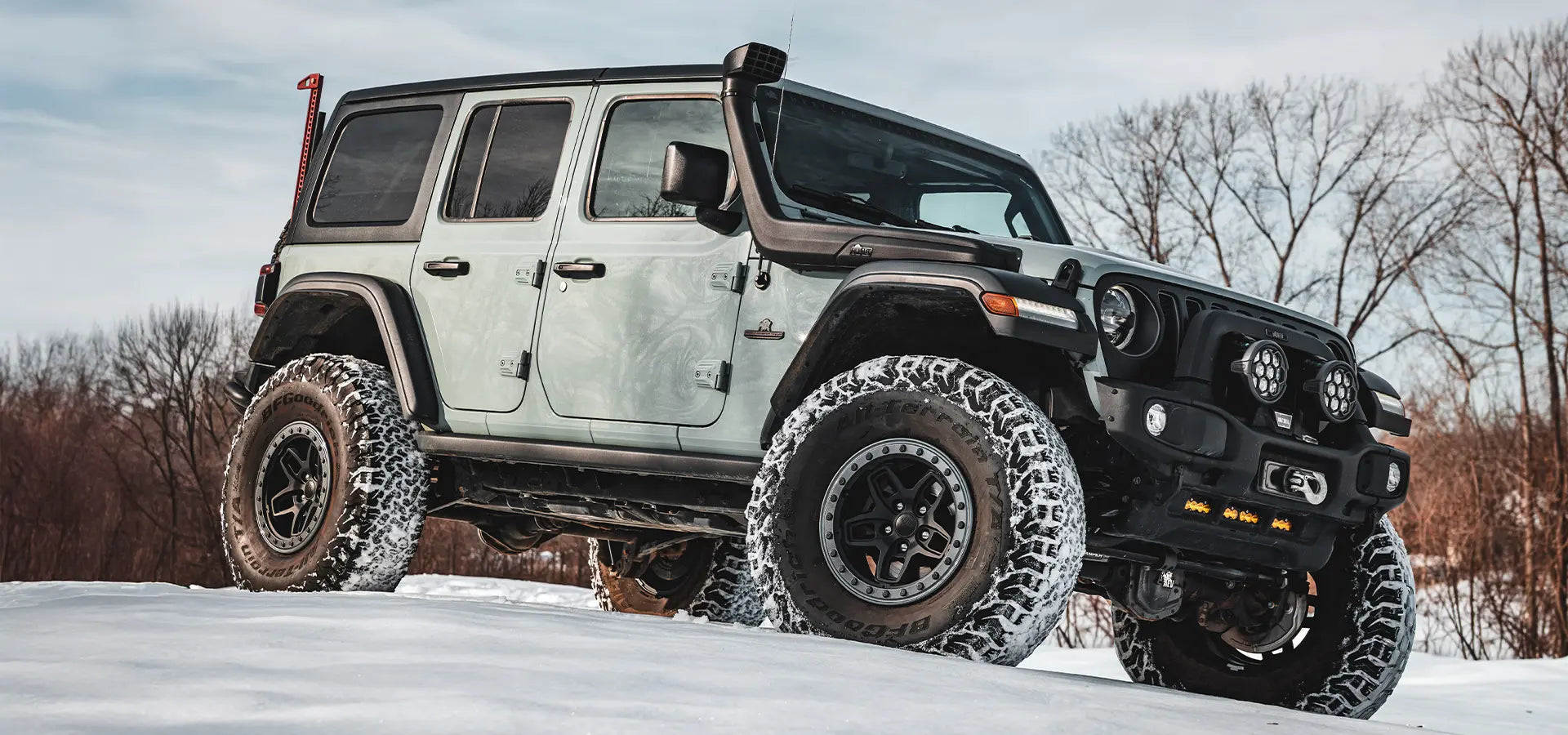

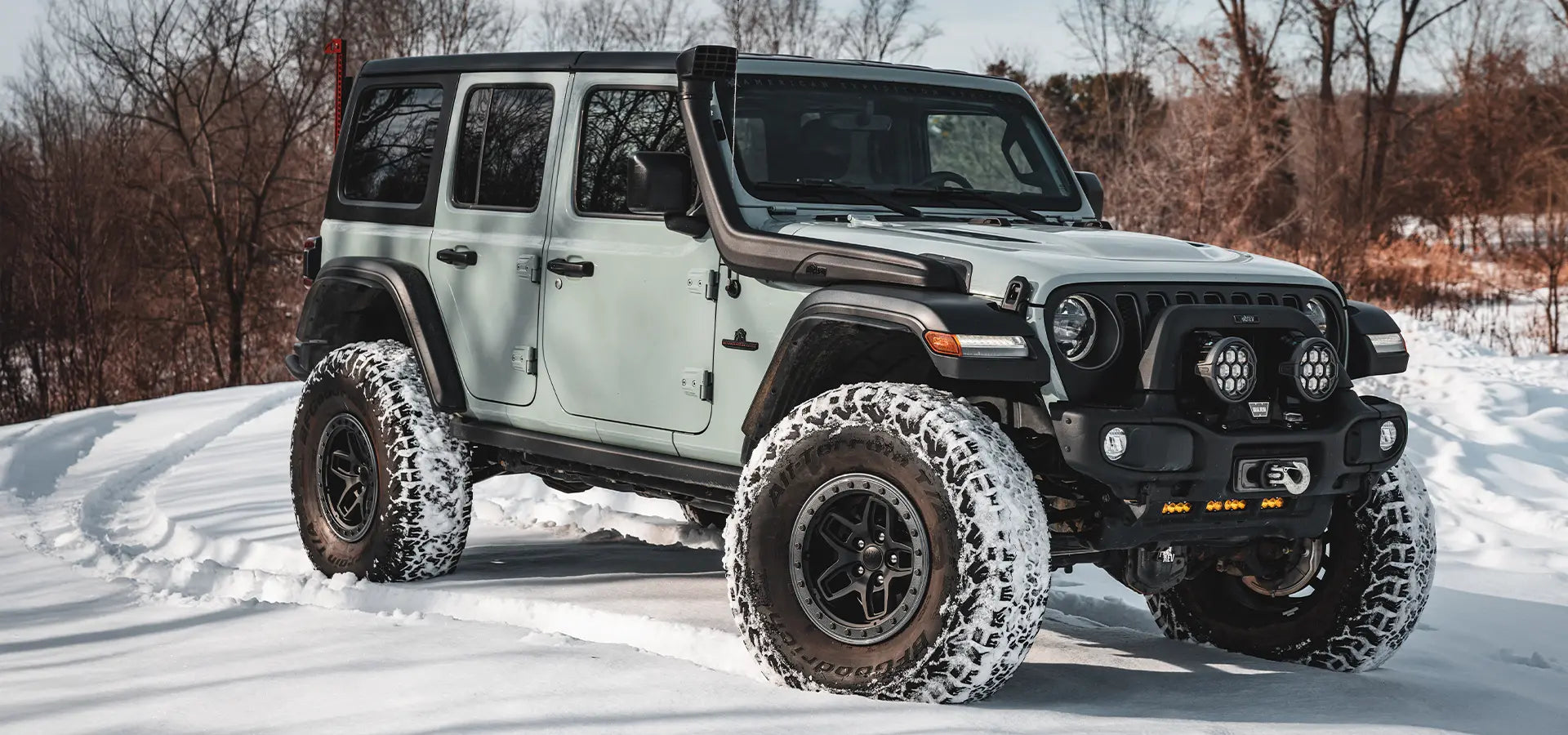

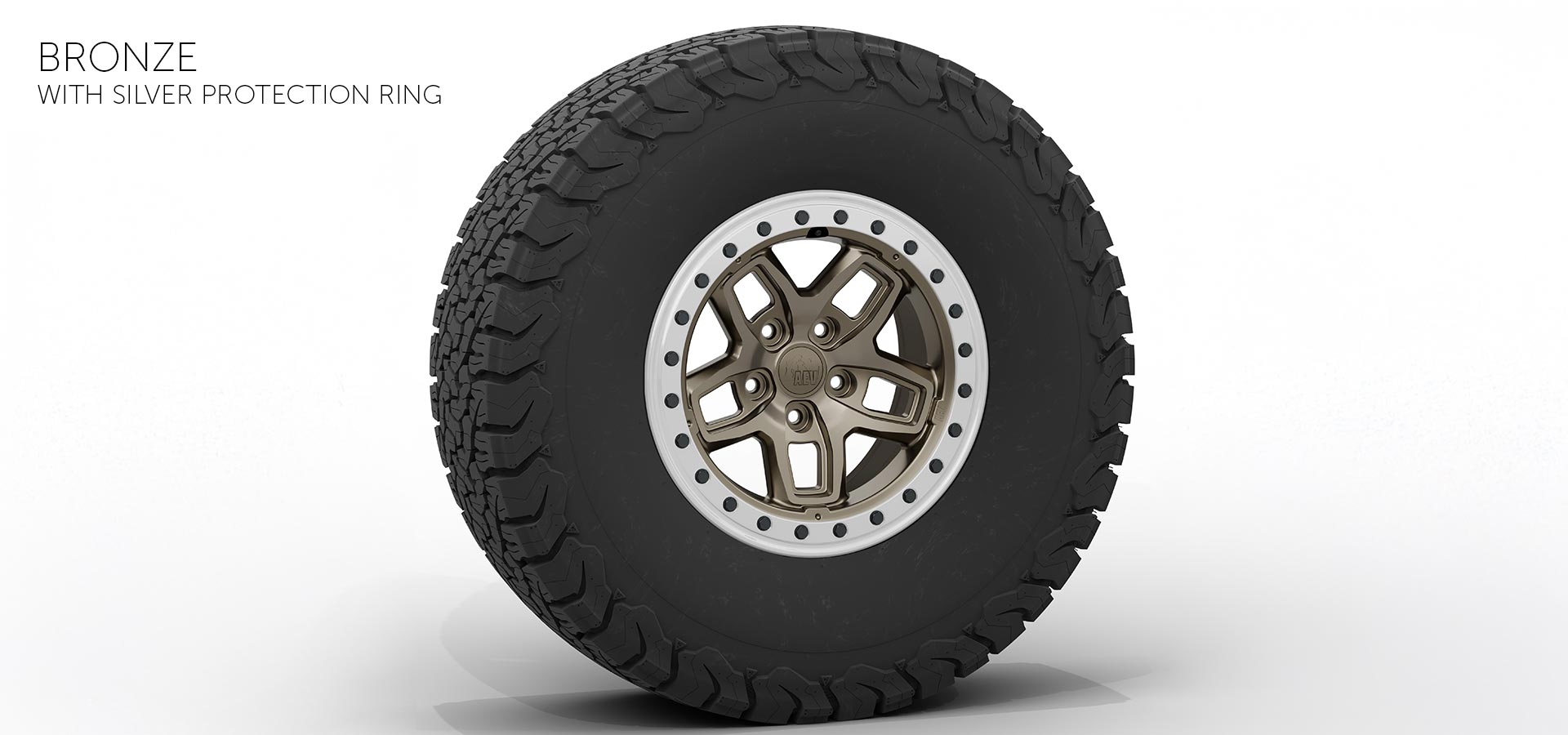

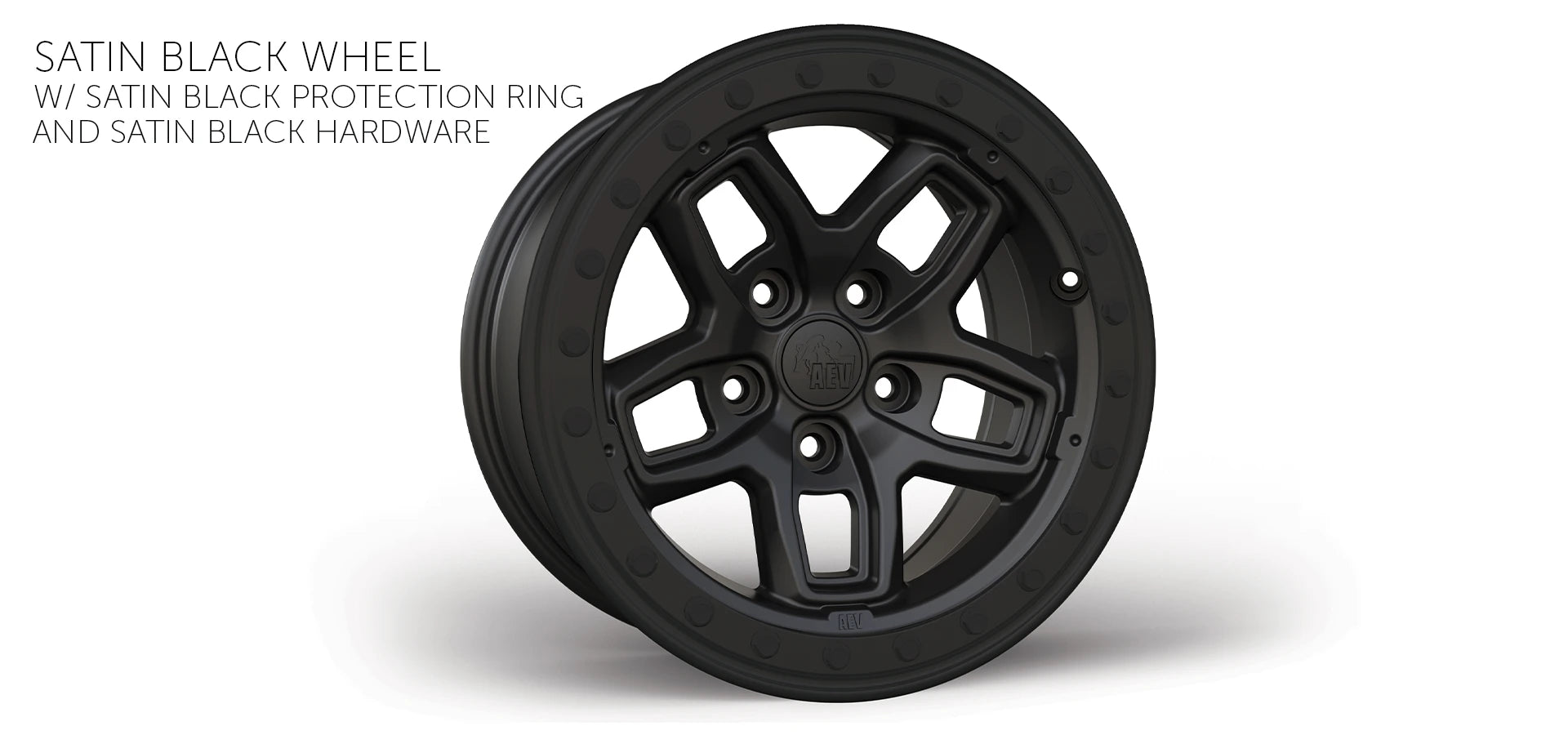

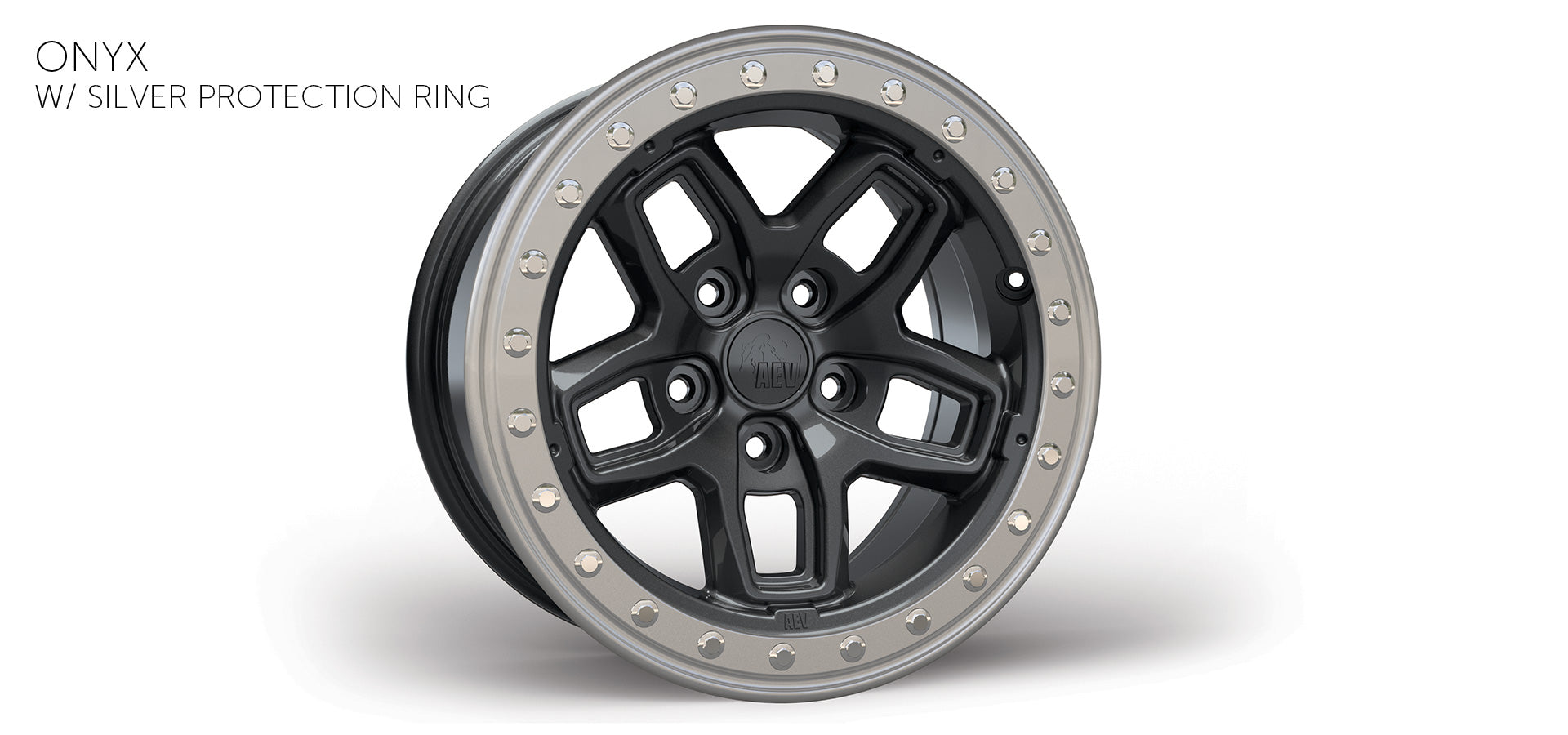

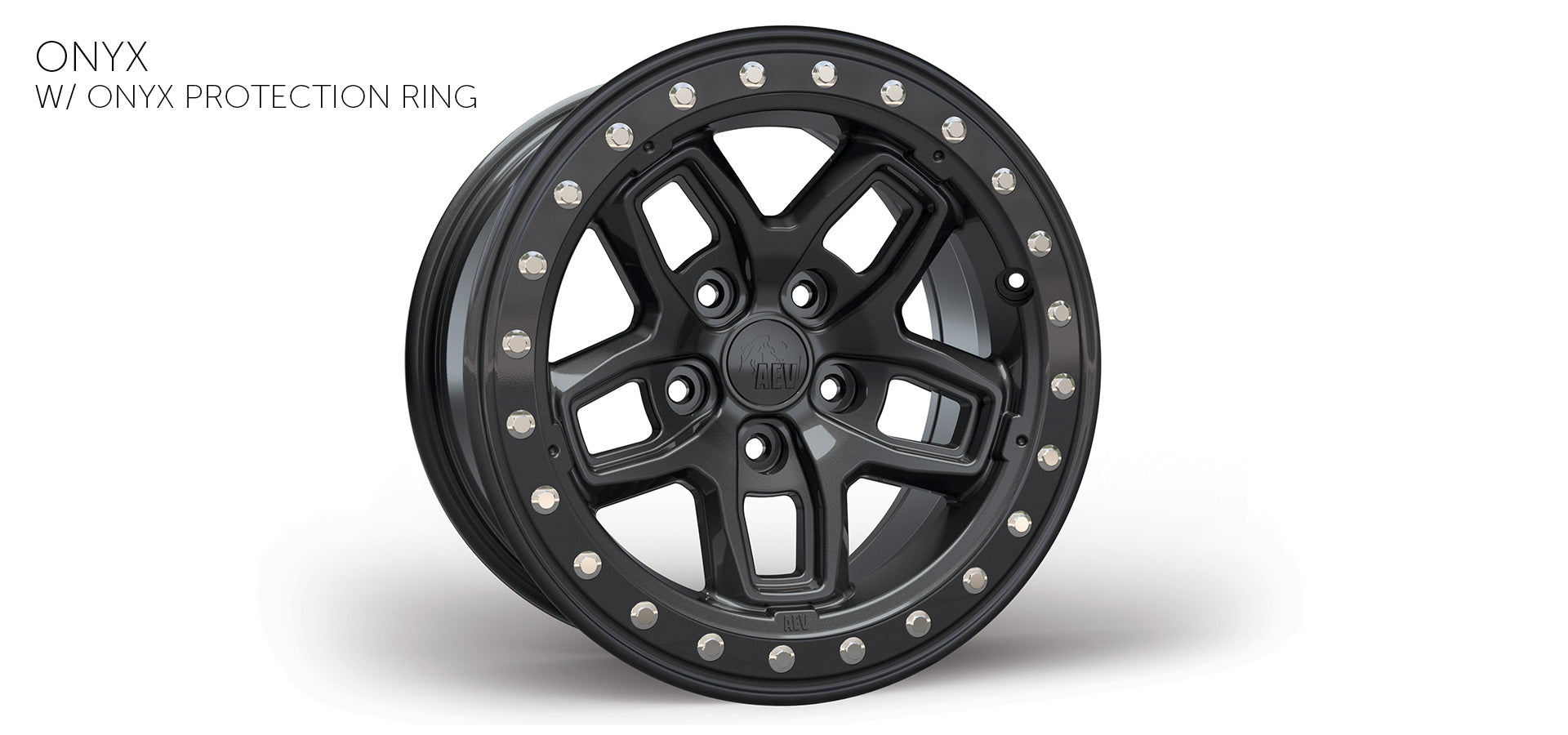

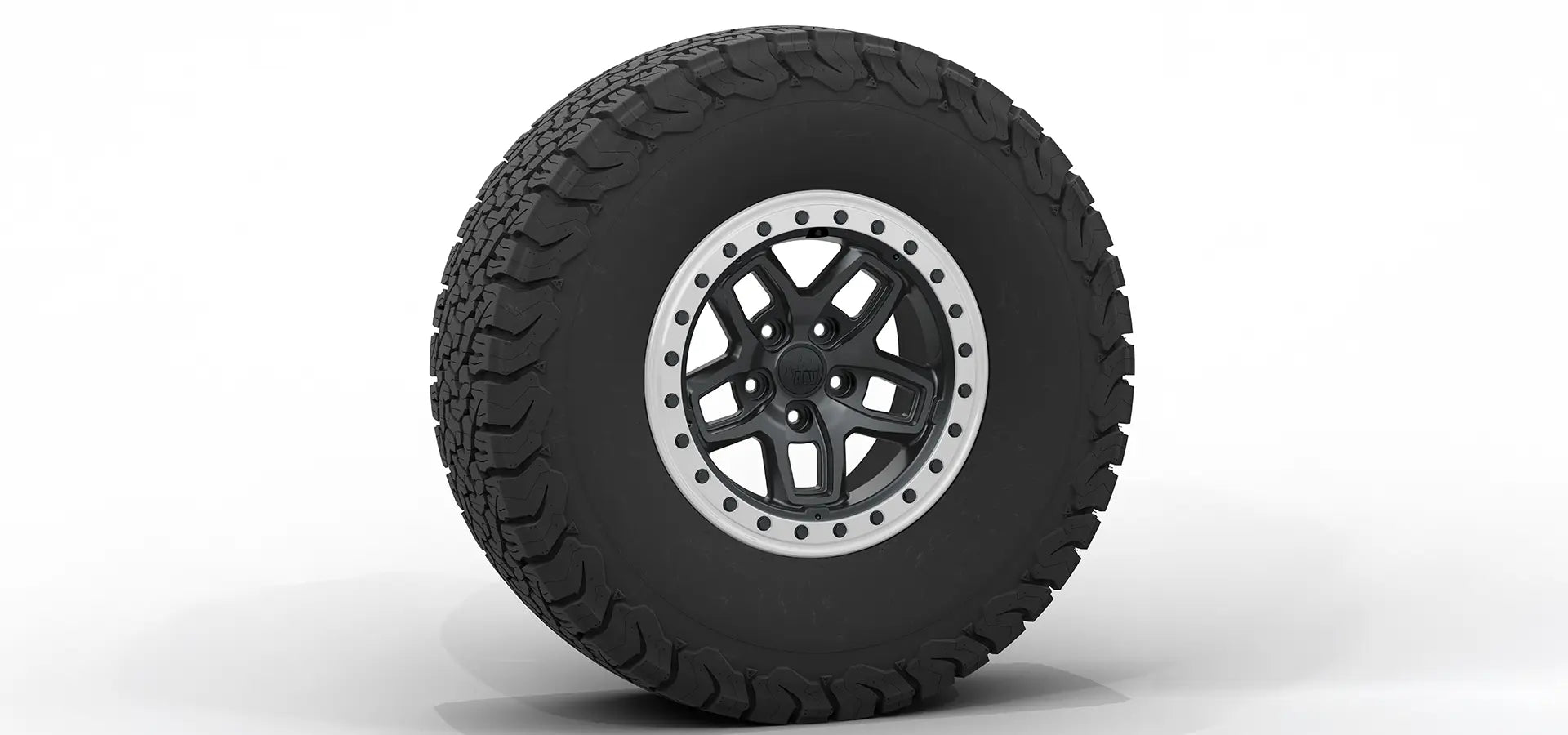

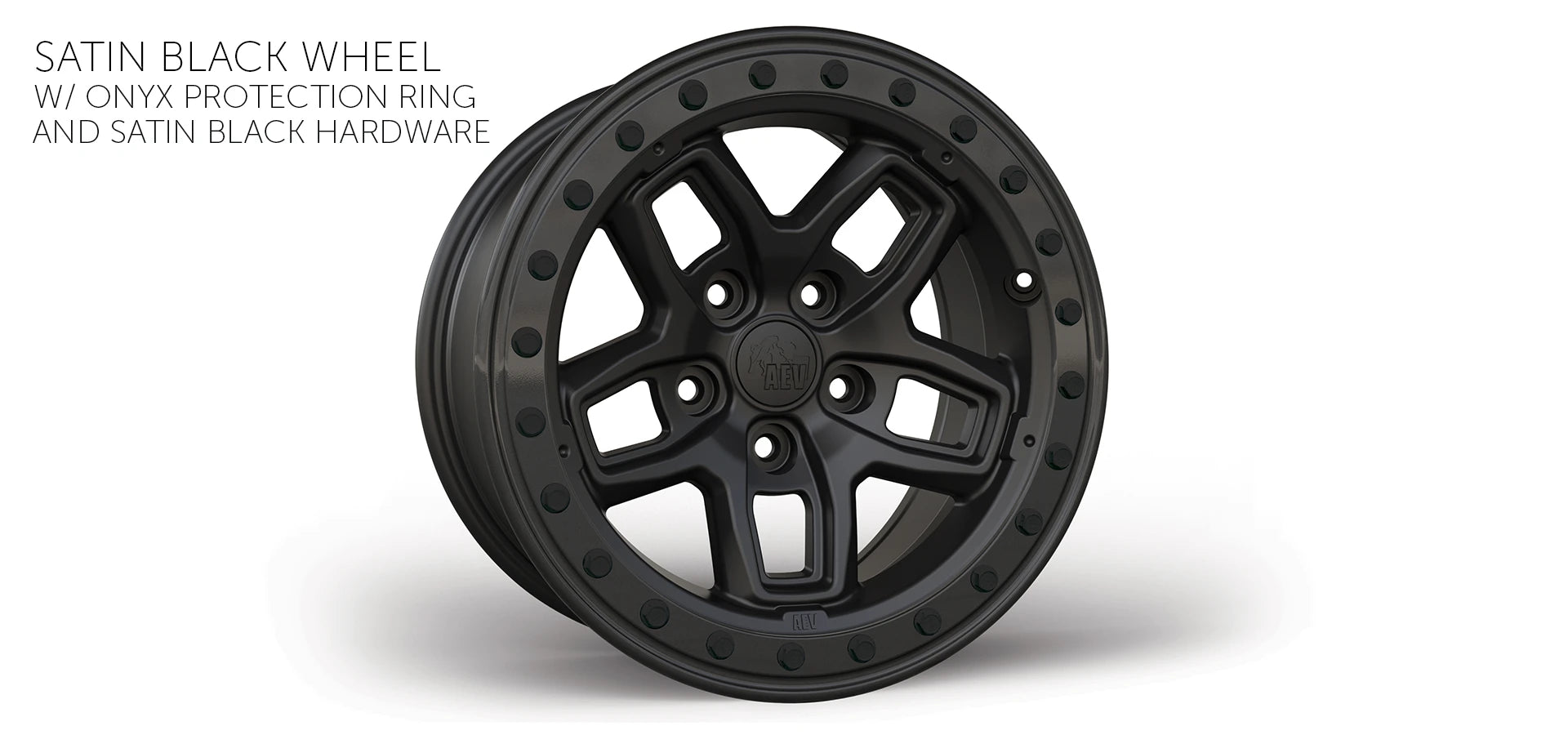

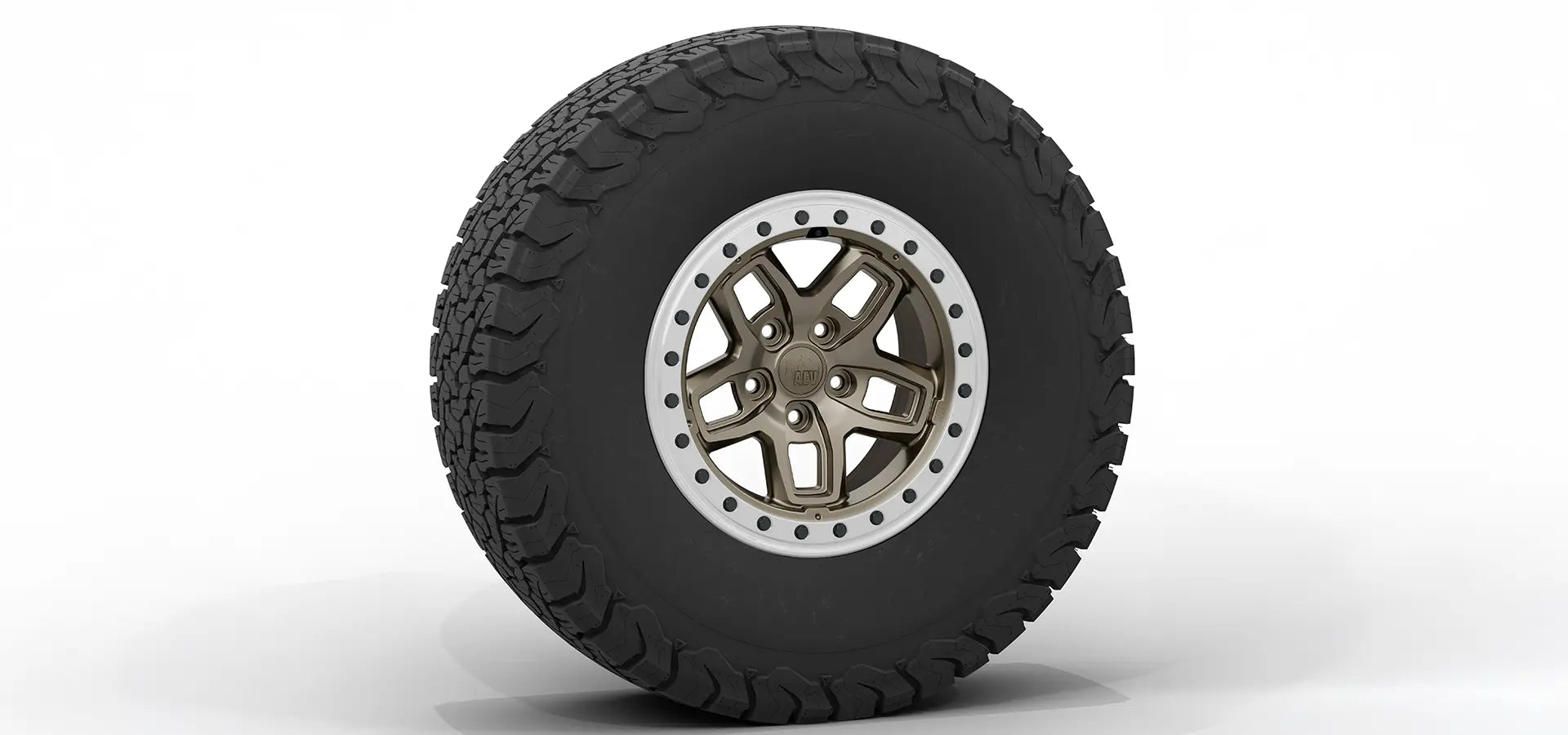

  • Protection Ring - The Protection Ring is a non-functional cast aluminum ring, designed as a sacrificial part to protect the wheel from trail scratches while also providing the same look as the Beadlock Ring. The Protection Rings marked M8 includes Grade 8.8 hardware in a Silver finish while the new M10 hardware is Satin Black and Grade 10.9.

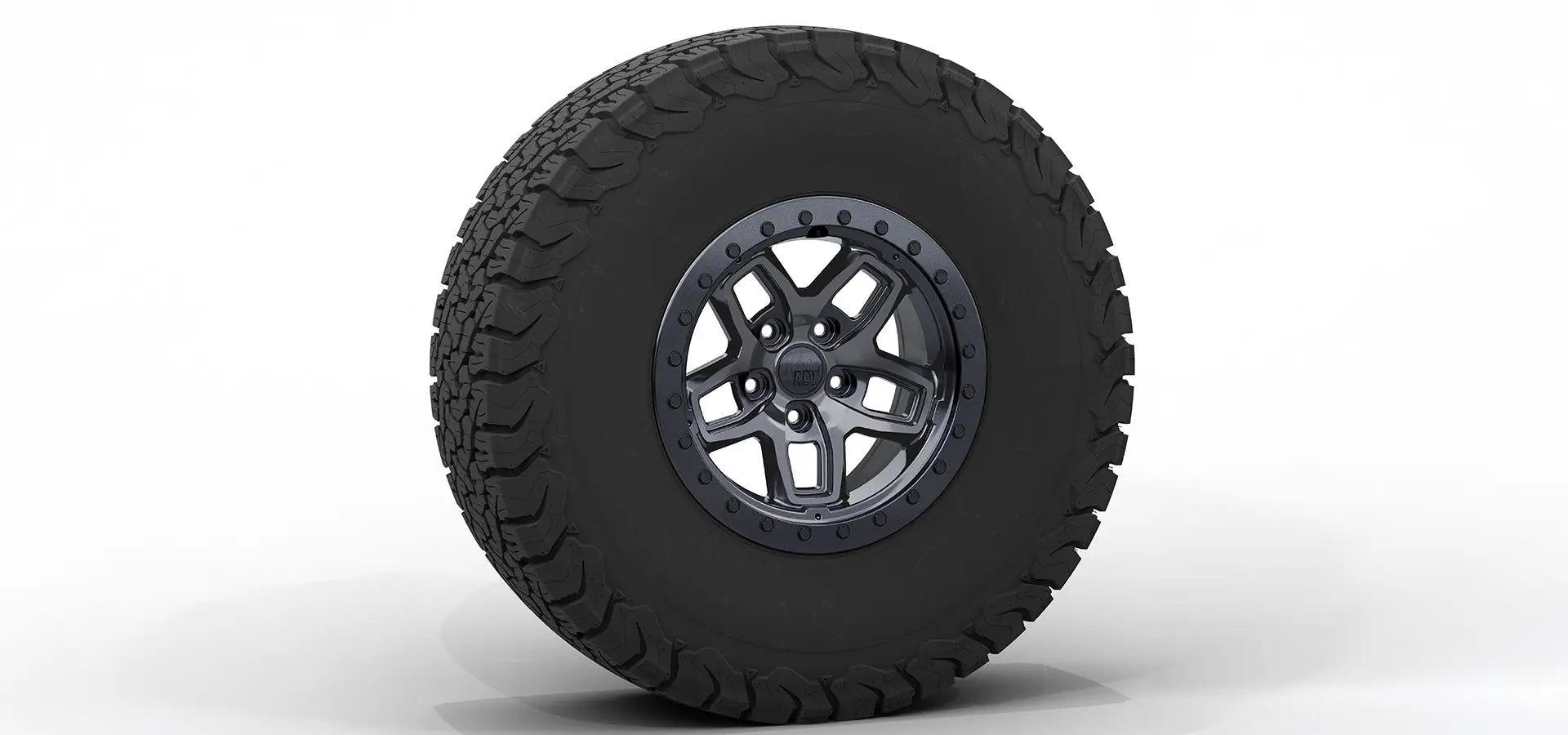

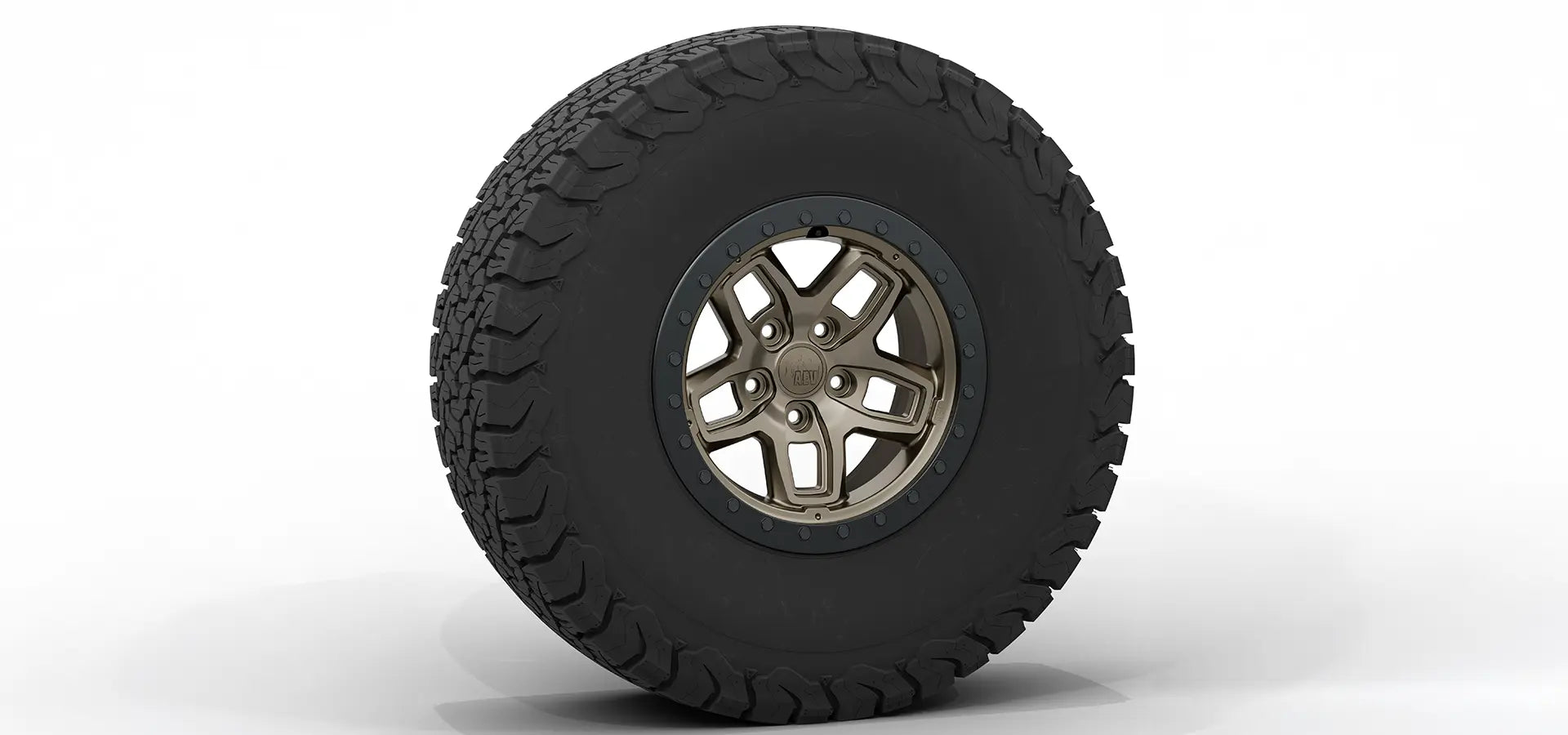

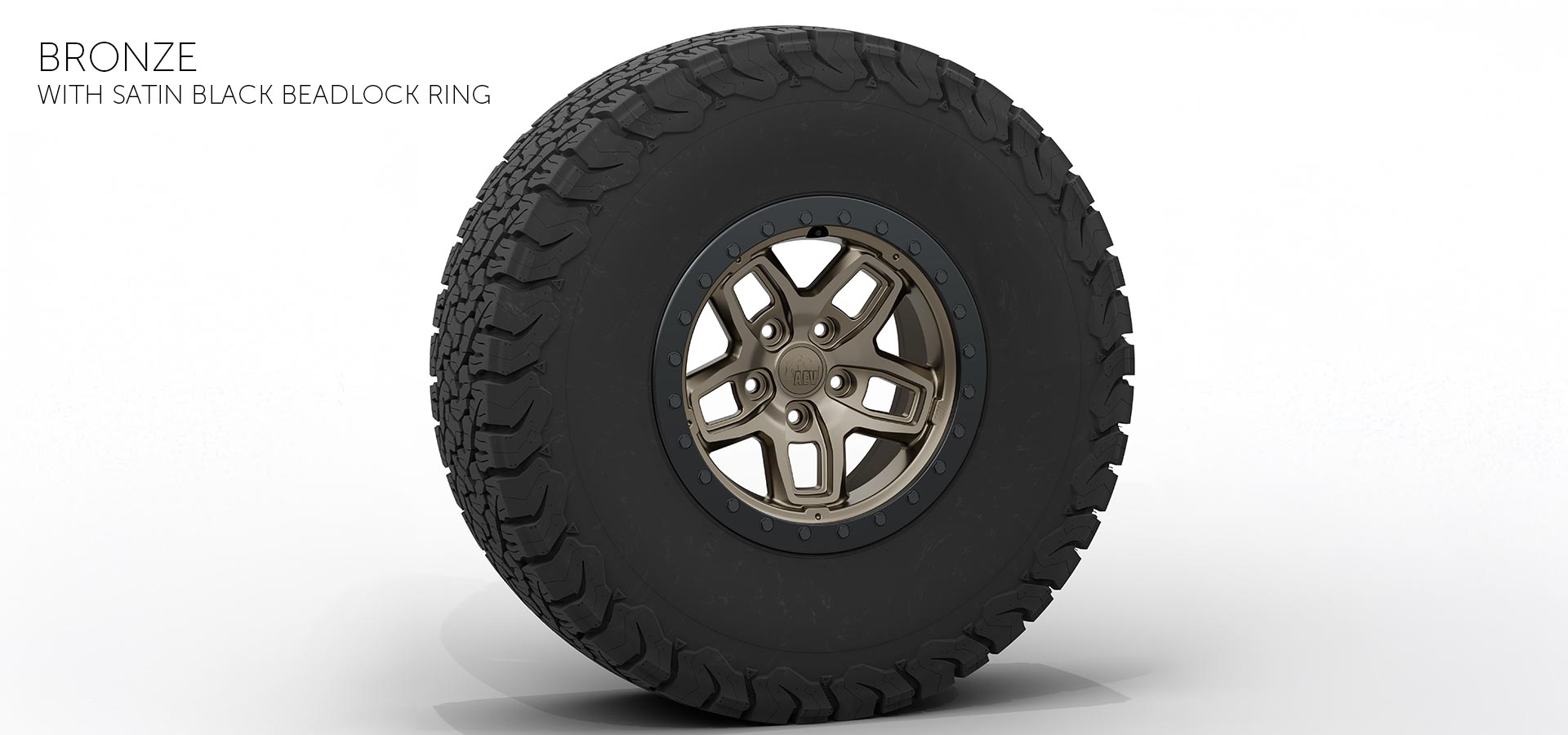

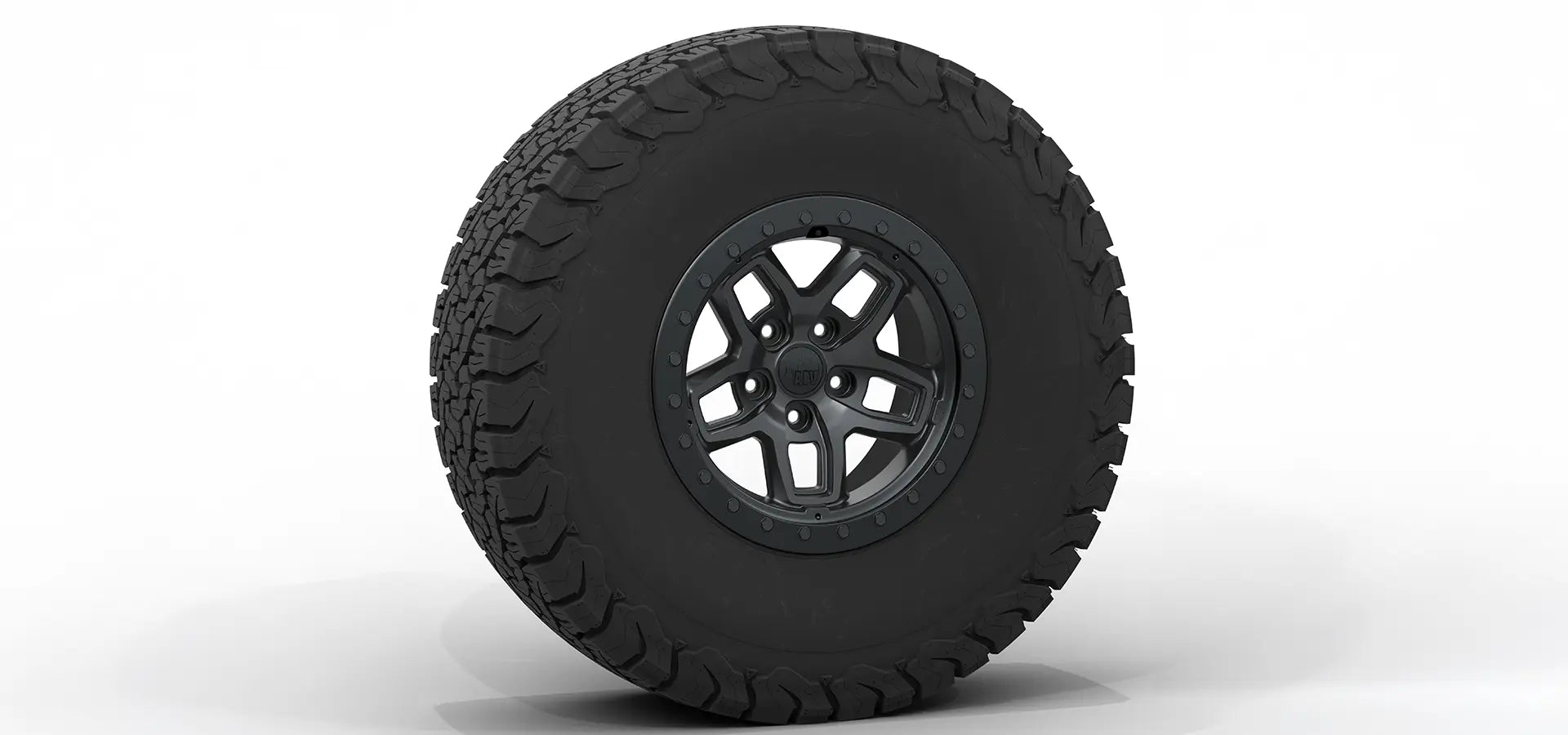

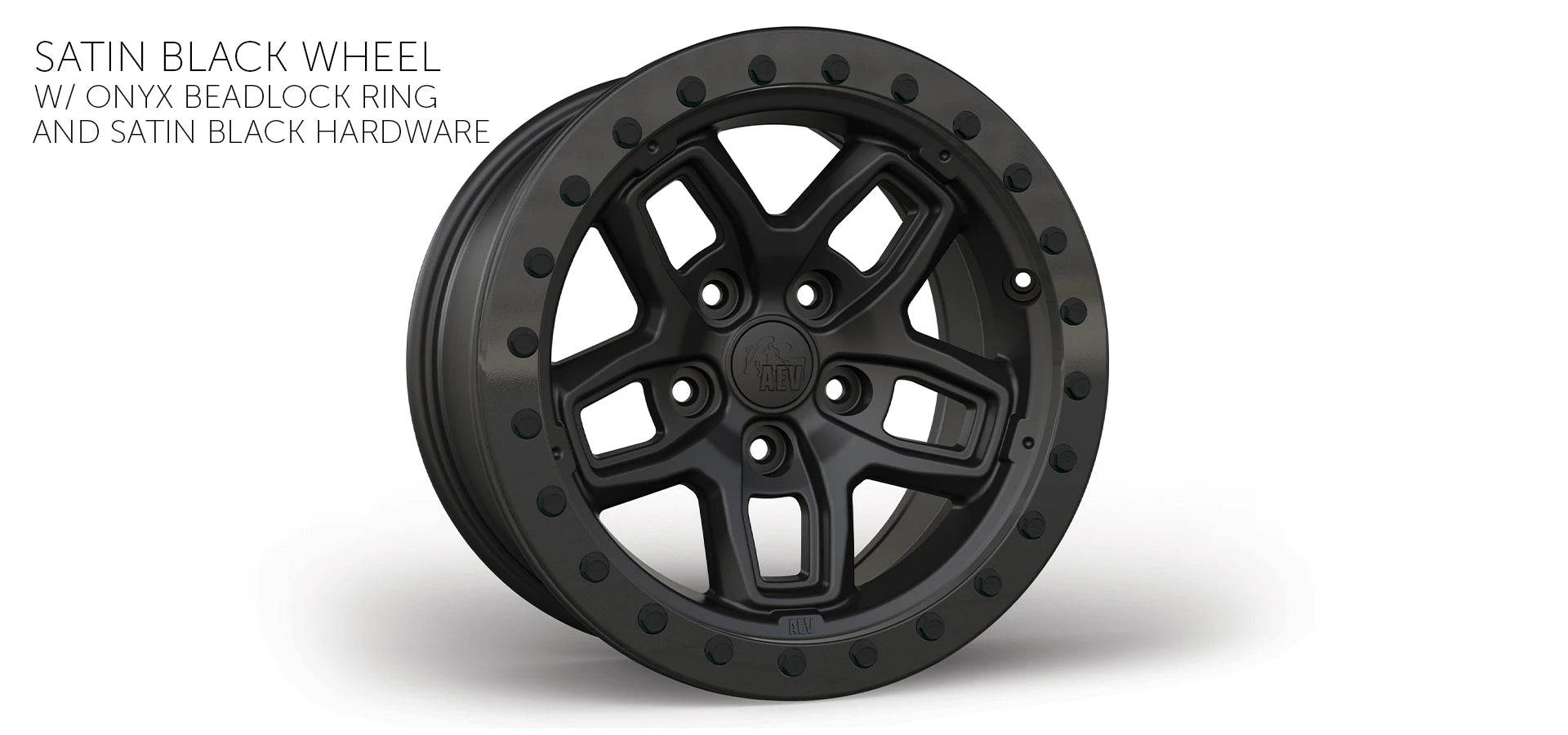

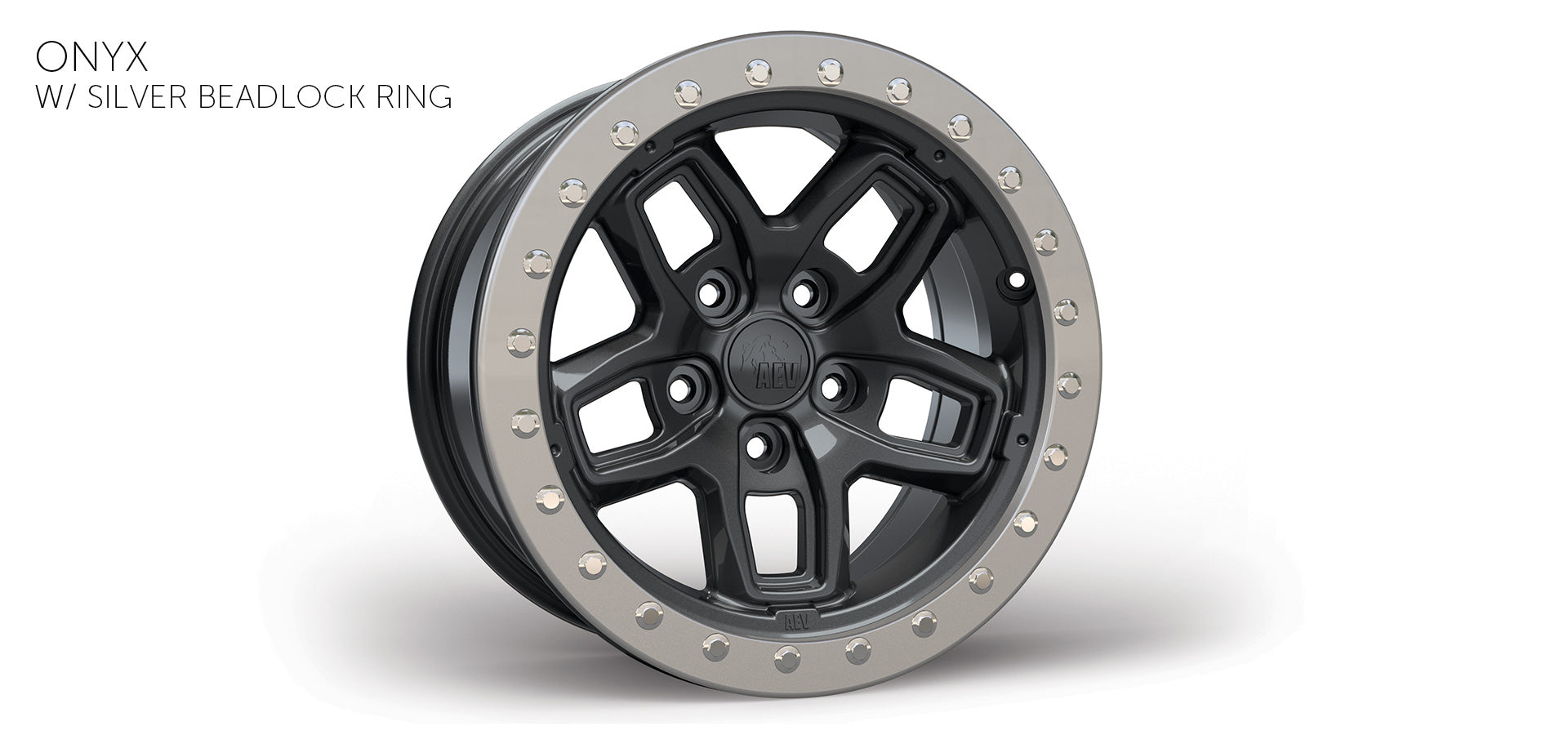

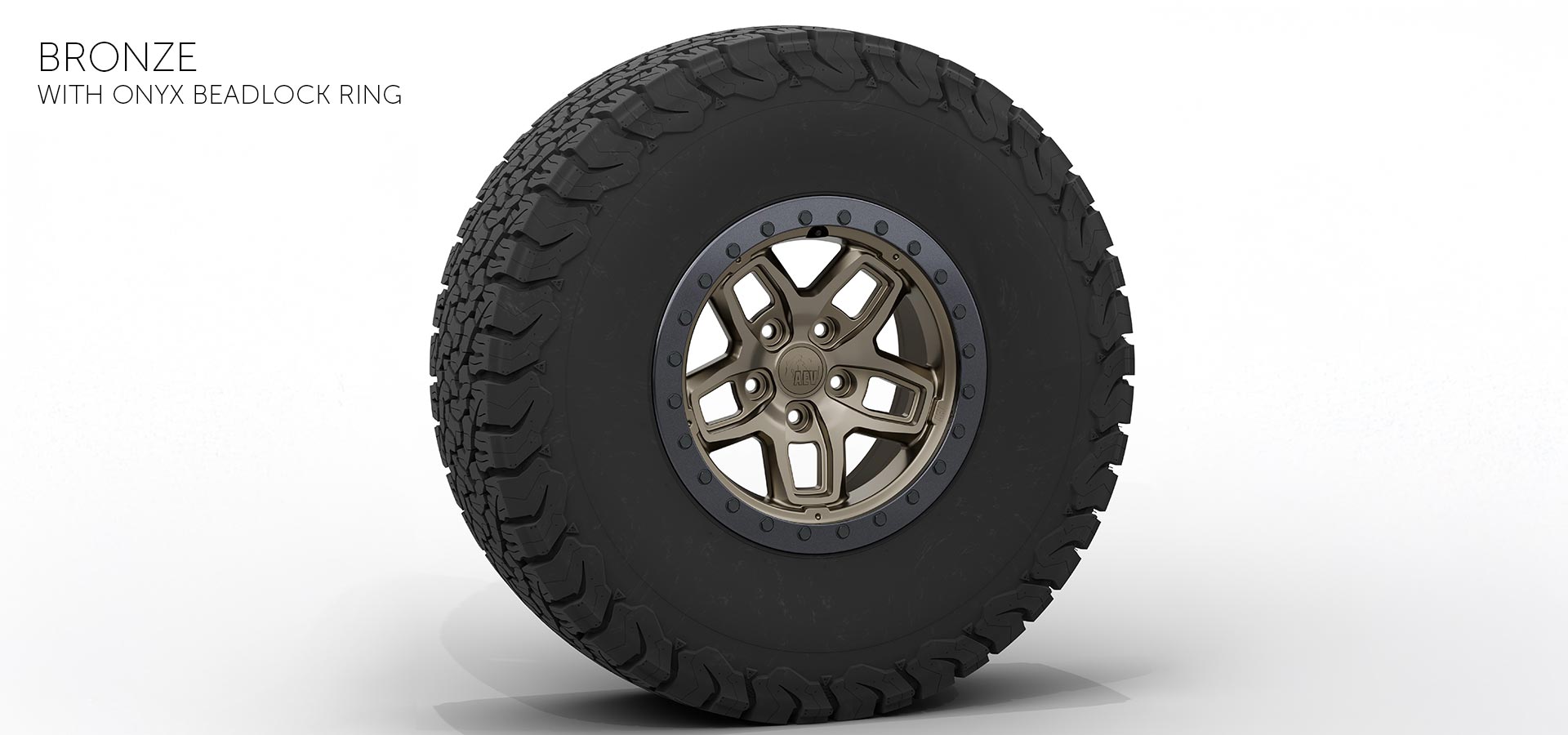

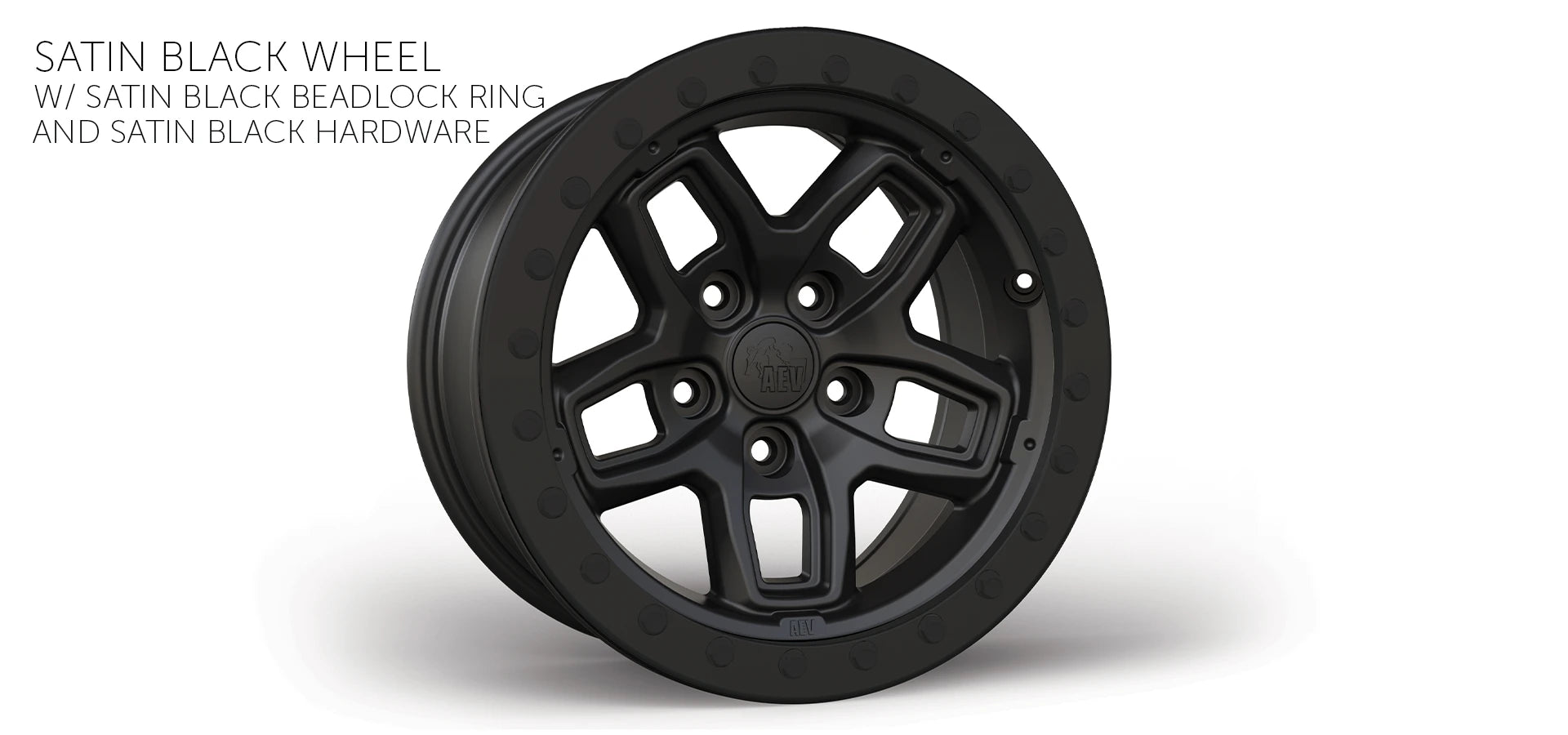

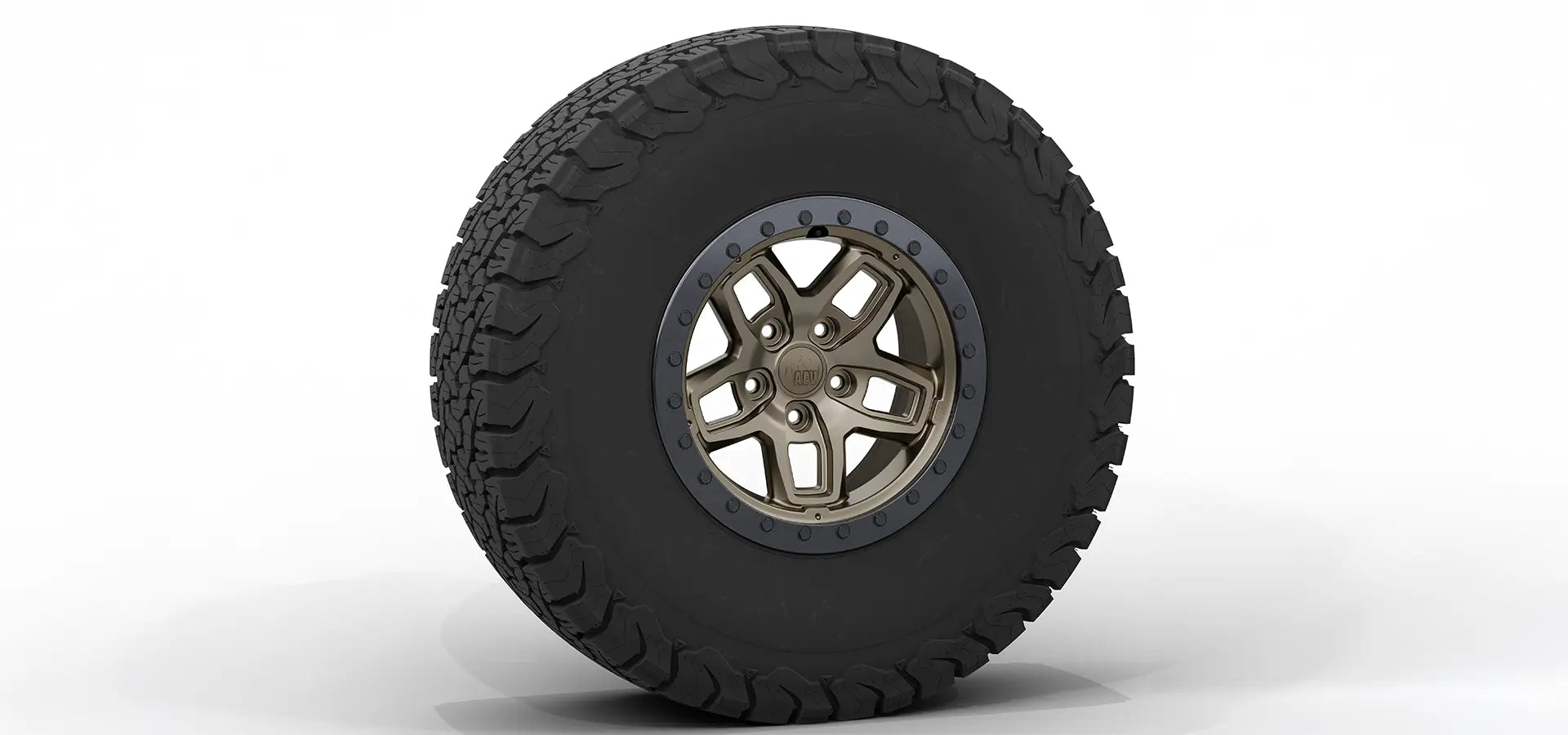

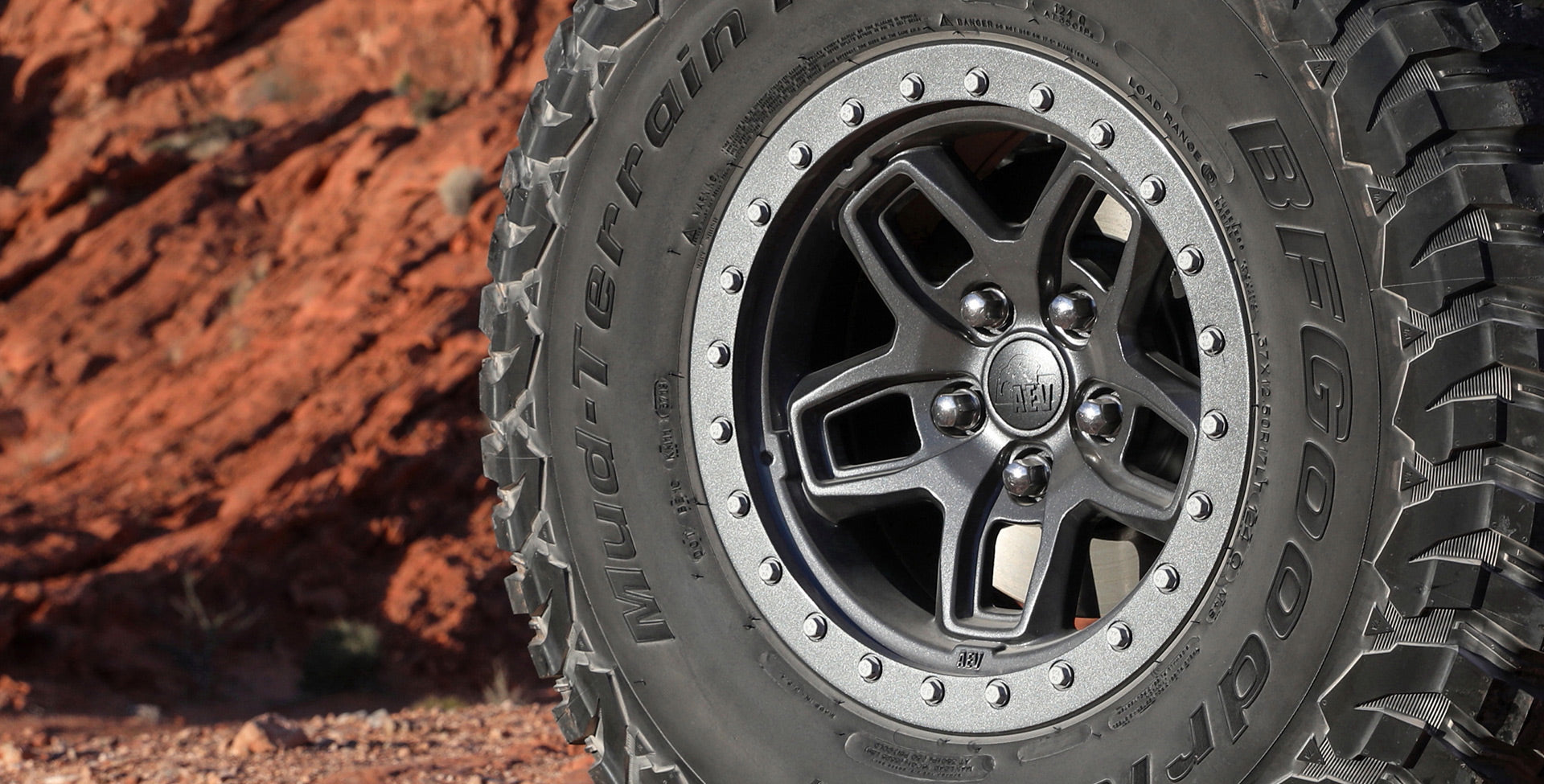

  • Beadlock Ring - The Beadlock Ring is designed with maximum strength and off-road durability in mind by utilizing a 16mm thick, forged aluminum beadlock ring and custom Grade 10.9 metric hardware for increased shear strength and higher torque requirements. Beadlock Rings marked M8 are supplied with hardware in a Silver finish while the new M10 hardware is supplied in a Satin Black finish. AEV recommends that the Beadlock Ring be used for off-road purposes only.

Key Features

  • Hub centric design
  • Accepts OE lug nuts
  • Recessed valve stem for added protection
  • TPMS Compatible
  • Both versions have been tested to stringent DOT/SAE J2530 standards
  • Molded AEV Center Cap included
  • Lifetime structural warranty



Brand Model Size
BFGoodrich All-Terrain KO2 LT285/70R17
BFGoodrich All-Terrain KO2 LT315/70R17
BFGoodrich All-Terrain KO2 34x10.50R17
BFGoodrich All-Terrain KO2 35x12.50R17
BFGoodrich All-Terrain KO2 37x12.50R17
BFGoodrich Mud-Terrain KM2 LT285/70R17
BFGoodrich Mud-Terrain KM2 35x12.50R17
BFGoodrich Mud-Terrain KM2 37x12.50R17
BFGoodrich Mud-Terrain KM3 LT285/70R17
BFGoodrich Mud-Terrain KM3 LT295/70R17
BFGoodrich Mud-Terrain KM3 35x12.50R17
BFGoodrich Mud-Terrain KM3 37x12.50R17
General  Grabber X3 37x12.50R17
Nitto Ridge Grappler 37x12.50R17
Toyo  Open Country M/T 35x12.50R17
Toyo Open Country M/T 37x12.50R17
Yokohama Geolander MT G003 LT285/70R17

Important Fitment Notes

  • Off Road Use Only: The AEV Jeep Wrangler JL/Gladiator Borah Beadlock wheel with the Beadlock Ring installed is DOT compliant but that does not necessarily mean that they are 50-state legal for street use. Check state and local restrictions on beadlock installation and use BEFORE ordering. Beadlock wheels must be properly installed and require routine maintenance. As a general policy, AEV recommends that beadlock wheels are used for off-road purposes only.
  • AEV Beadlock Tire Compatibility: Due to the inherent variances in bead thickness between different tire models/manufacturers, the Borah/Crestone wheel is not compatible with some tires. We have confirmed that the tires listed below are compatible with this wheel. Other tire brands and models may also work but AEV only recommends using the tires listed on this chart. Tires that are not listed on this chart may have a bead that is too thick for this wheel which can lead to wheel failure, vehicle damage and personal injury. AEV will be updating this list with additional tire manufacturers and models as we test them. Please contact the AEV Sales Team at (248) 926-0256 if you have any questions or concerns about tire compatibility before ordering. This advisory affects the Borah/Crestone wheel in the functional beadlock configuration only.

INSTALLATION

Installation Difficulty: Moderate

Estimated Install Time: 4 Hours (for Beadlock Ring only)

Installation Guides:

Technical Specs

Manufacturing Process: Cast
Material: Aluminum
Coatings: Paint, Primer
Size: 17" x 8.5"
Weight: 33lbs
Bolt Pattern: 5x5
Hub Bore Diameter: 71.5mm
Offset: +25mm
Approximate Backspacing: 5.72"
Weight Rating: 2,400lbs
