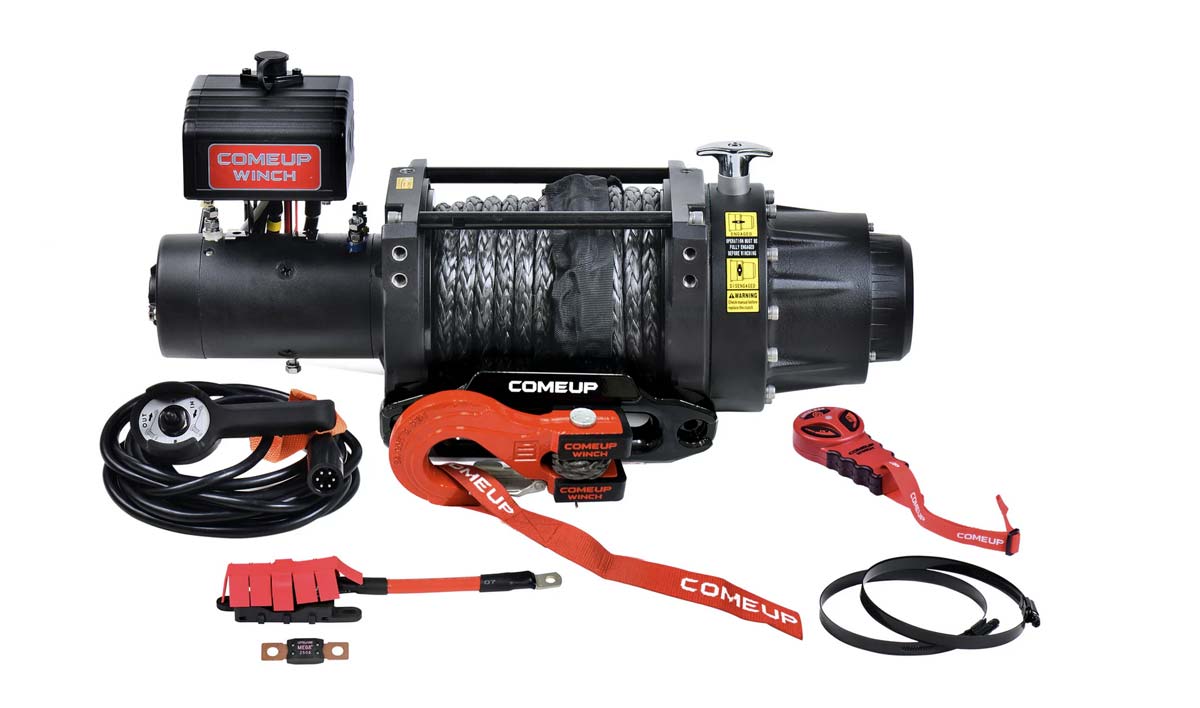

COMEUP SEAL 20.0rs Trail Edition

Transform your AEV RAM HD Premium Front Bumper with the COMEUP Seal 20.0rs Trail Edition winch, crafted for unparalleled performance in the toughest conditions. Boasting a robust 20,000-pound pulling capacity, this winch is engineered to handle demanding off-road challenges with ease. The Seal 20.0rs features synthetic rope for lightweight durability and a waterproof construction that ensures reliability in all weather conditions. Its integrated wireless remote control offers convenient operation, while the sleek design seamlessly integrates with the AEV bumper’s premium aesthetic. Prepare for any adventure confidently with the COMEUP SEAL 20.0rs Trail Edition winch, your ultimate companion for off-road exploration and recovery.

• 12V DC severe duty winch rated at 20,000 lb pulling meets or exceeds your expectations.
• Heavy-duty series-wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
• 4 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 90-degree Increments.
• Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
• Both built-in digital two-way signal wireless remote control and waterproof remote with thermometric indicator LED w/17′ (5 m) cord
• A 12-strand construction synthetic rope coated to improve abrasion and has no water absorption.
• Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
• U.S. Germany, U.K. France, etc. patented mechanical cone brake holds the full load.
• BossHook L made of strong SCM440 alloy steel, MBS18,200 KG.
• The Fuse Kit is designed to protect the winch motor and controls from damage caused by Amperage overload or short circuit.



Tech Specs:

Manufacturer Part Number:

298232

Rated Line Pull:

20,000 lb single line

Motor:

5,220 w / 7.0 hp 12V series wound

Gear Ratio:

3-stage planetary 343:1

Clutch (freespooling):

Rotating ring gear

Brake (outside the drum):

Automatic, full load CBS (Cone Brake Structure)

Winch Construction:

Aluminum die cast housings with steel drum Drum: Size 3.5″ x 8″L

Control:

Both built-in digital signal two-way wireless remote control and waterproof wired remote with thermometric indicator LED w/ 17’ (5 m) cord

Rope Type:

Synthetic rope

Rope Size:

9/16″ x 55′

Mounting Bolt Pattern:

10″ x 4.5″ (254 x 114 mm), 10″ x 6.5″ (254 x 165 mm)

Winch Weight:

109.3 lb

Warranty:

Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
